Safety is paramount in mines. This product, based on standard PVC-coated fabric, features an anti-static treatment. It effectively dissipates static electricity generated by friction with the duct wall, preventing explosion risks in mines with high gas concentrations. It also offers excellent flame retardancy and abrasion resistance. It is a safe choice for gas dilution, dust removal, and fresh air delivery in coal and metal mines, where explosion-proof working surfaces are required.
Raw Material | PVC Coated Fabric |
Base Fabric | knitted/woven polyester fabric |
Color | Yellow or Black |
Fireproof | B1, B2, M1, M2, NFPA701 Optional |
Use temperature | -40℃ ~ +100℃ |
Surface Resistivity-Anti-static (optional) | <300 mega |
Pitch | 150mm, 200mm, 300mm |
Diameter of Wire | 5mm ~ 10mm |
Diameter | 10 inches ~ 70 inches |
Coupling Type | Steel ring, Zipper, Velcro or Customers Requirement |
Features | Flexible, Waterproof, Windproof, Anti-cold, Anti-mildew, Anti-UV, Anti-aging, Anti-static Tear Resistant, Corrosion Resistance, Flame retardant, etc. |
Good flexibility, any bending, free connection, light weight; easy to carry and clean
Waterproof, acid resistance, corrosion resistance, wear resistance, and high compressive strength
Anti-static (optional) : surface resistivity : less than 3×108ohm;
Flame retardant(optional) : NFPA-701, B1, B2 or M2
Non-toxic, odorless, dust-free
Temperature: -40℃ to +100℃
Rustproof Grommets: For your convenience, we provide grommet attachments with our ventilation duct. Grommets offer a sturdy and secure method for hanging the ventilation duct, allowing for easy installation and adjustment.

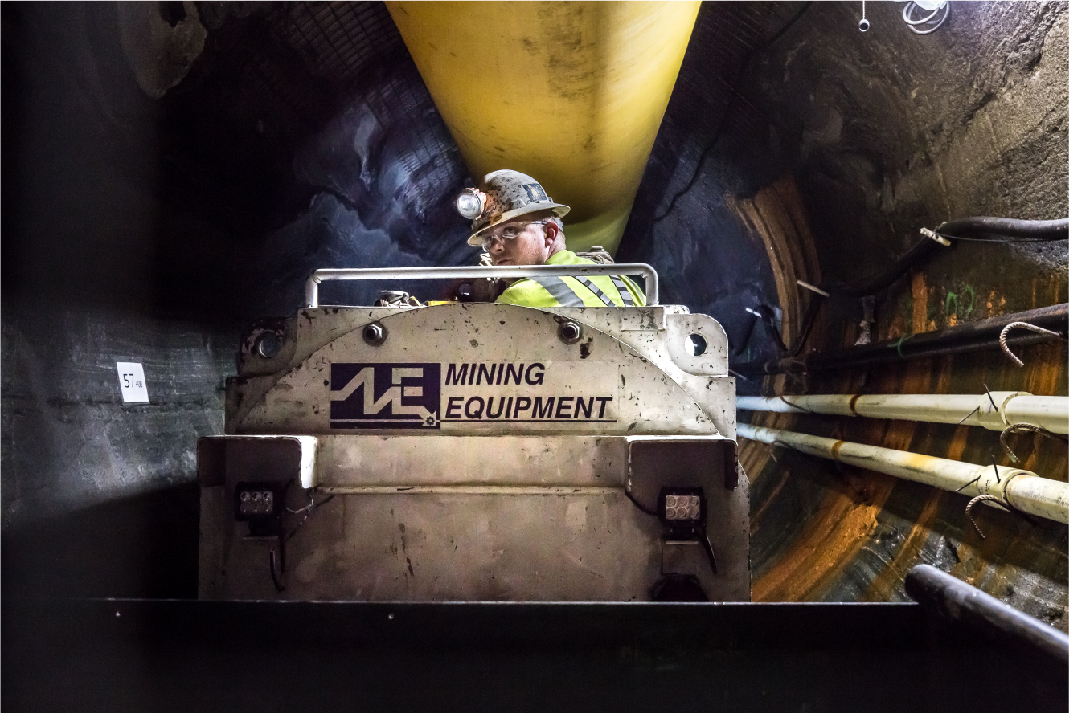

Underground mining
Underground construction
Underground parking garage
Engineering tunnel
Aviation duct
Basements
Hospitals and laboratories
Safety is paramount in mines. This product, based on standard PVC-coated fabric, features an anti-static treatment. It effectively dissipates static electricity generated by friction with the duct wall, preventing explosion risks in mines with high gas concentrations. It also offers excellent flame retardancy and abrasion resistance. It is a safe choice for gas dilution, dust removal, and fresh air delivery in coal and metal mines, where explosion-proof working surfaces are required.
Raw Material | PVC Coated Fabric |
Base Fabric | knitted/woven polyester fabric |
Color | Yellow or Black |
Fireproof | B1, B2, M1, M2, NFPA701 Optional |
Use temperature | -40℃ ~ +100℃ |
Surface Resistivity-Anti-static (optional) | <300 mega |
Pitch | 150mm, 200mm, 300mm |
Diameter of Wire | 5mm ~ 10mm |
Diameter | 10 inches ~ 70 inches |
Coupling Type | Steel ring, Zipper, Velcro or Customers Requirement |
Features | Flexible, Waterproof, Windproof, Anti-cold, Anti-mildew, Anti-UV, Anti-aging, Anti-static Tear Resistant, Corrosion Resistance, Flame retardant, etc. |
Good flexibility, any bending, free connection, light weight; easy to carry and clean
Waterproof, acid resistance, corrosion resistance, wear resistance, and high compressive strength
Anti-static (optional) : surface resistivity : less than 3×108ohm;
Flame retardant(optional) : NFPA-701, B1, B2 or M2
Non-toxic, odorless, dust-free
Temperature: -40℃ to +100℃
Rustproof Grommets: For your convenience, we provide grommet attachments with our ventilation duct. Grommets offer a sturdy and secure method for hanging the ventilation duct, allowing for easy installation and adjustment.
Underground mining
Underground construction
Underground parking garage
Engineering tunnel
Aviation duct
Basements
Hospitals and laboratories
