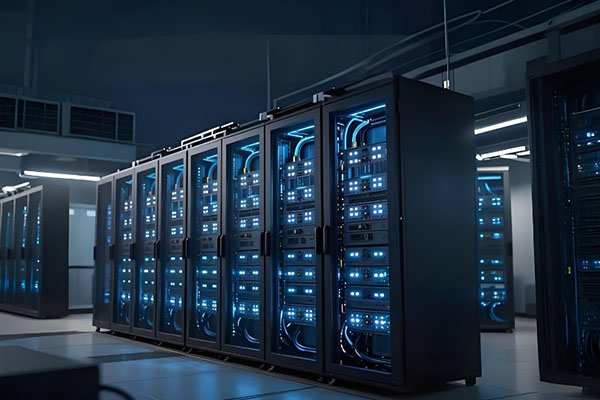

A data center room is an area where servers, network equipment, storage systems, and communication devices operate continuously. These devices generate significant amounts of heat during operation. If indoor airflow is poorly organized, the room may experience localized overheating, hot and cold air mixing, and fluctuations in equipment intake temperature. Therefore, a well-designed data center room air circulation solution is essential for maintaining equipment stability, improving the indoor environment, and controlling energy consumption.
Air circulation in a server room is not simply about increasing airflow. It requires comprehensive planning based on equipment layout, heat load, air supply methods, return air paths, and precision cooling systems. Proper airflow organization allows cool air to reach equipment intake areas efficiently while quickly removing hot air generated by IT equipment.
Servers, switches, UPS systems, and other equipment continuously generate heat during operation. As equipment power density increases, natural ventilation is no longer sufficient for modern server rooms.
A professional air circulation system uses precision air conditioning, supply air systems, and return air systems to create a stable airflow pattern. Cool air is delivered to equipment intake areas, while hot exhaust air is collected and returned to the cooling system.
The workload of different server racks is not always the same. High-load servers can generate significantly more heat than surrounding equipment. If cool air cannot reach the rack air intakes effectively, localized hot spots may develop.
By properly arranging server racks, supply outlets, and return air outlets, airflow organization can be improved and temperature differences between different areas can be reduced.
The core objective of a server room air circulation system is to make air move in a predetermined direction. Common approaches include underfloor air supply, overhead air supply, and dedicated supply and return air channels.
Underfloor air distribution can deliver cooled air directly toward server intake areas, while hot air discharged by equipment can be collected through upper return-air areas and sent back to the precision cooling system.
During system design, direct circulation of cool air into return-air areas should be avoided as much as possible. This reduces airflow short circuits and improves the utilization of available cooling capacity.
Hot and cold aisle layouts are an important way to improve server room airflow. Server racks are commonly arranged face-to-face to form cold aisles and back-to-back to form hot aisles.
Cold aisles concentrate the supply of cool air. Servers draw in this cool air and discharge hot air into the hot aisle. Separating hot and cold air reduces unnecessary mixing and improves overall cooling efficiency.
Different server rooms have different numbers of racks and power densities. Therefore, precision cooling capacity and circulation airflow should be calculated according to the actual heat load.
For high-density server areas, in-row cooling and rear-door heat exchangers can provide more targeted heat removal. For AI computing and high-performance computing environments with extremely high power densities, liquid cooling can also be considered.
| Cooling Method | Suitable Application | Main Characteristics | Key Design Considerations |
|---|---|---|---|
| Hot/Cold Aisles | Standard server rooms | Improves airflow organization | Aisle layout, airflow separation |
| Precision Air Conditioning | Low- to medium-density server rooms | Stable temperature and humidity control | Matching cooling capacity to IT heat load |
| In-Row Cooling | High-density racks | Cooling close to the heat source | Equipment layout, airflow management |
| Rear-Door Heat Exchanger | High-power racks | Directly removes rack exhaust heat | Heat exchange capacity, water system design |
| Liquid Cooling | Ultra-high-density computing | Efficient heat removal | Coolant, heat exchanger system |
| Fresh Air/Auxiliary Ventilation | Supporting areas | Improves overall air circulation | Fresh air volume, filtration, control |
Temperature sensors can be installed at rack intake areas, hot aisles, cold aisles, and air conditioner return areas to monitor temperature changes throughout the server room in real time.
When abnormal temperatures are detected, cooling equipment operation, supply airflow, or local cooling systems can be adjusted promptly to reduce the duration of hot spots.
Server room loads can change according to the operating status of IT equipment. Keeping fans and cooling systems running at maximum capacity at all times can result in unnecessary energy consumption.
Variable-frequency fans and intelligent control systems can adjust airflow according to room temperature, equipment load, and actual cooling demand, enabling demand-based air circulation.
Packaging materials, equipment accessories, and other unnecessary items should not be stored around server room supply or return air paths. These objects may obstruct airflow and reduce cooling efficiency.
Filters, fans, air outlets, and precision cooling equipment should also be inspected regularly. Clogged filters or increased duct resistance may reduce actual supply airflow and negatively affect equipment cooling performance.
A professional data center room air circulation solution should be designed around equipment heat loads, airflow direction, hot and cold zones, and cooling capacity.
Through properly designed supply and return air systems, hot and cold aisle configurations, precision air conditioning, and intelligent monitoring, data centers can reduce hot and cold air mixing, improve cooling utilization, and lower the risk of localized rack hot spots.
For conventional server rooms, precision air conditioning combined with properly designed supply and return airflow may be sufficient. For high-density server rooms, hot and cold aisles, in-row cooling, and rear-door heat exchangers can provide more targeted cooling. As AI servers and high-performance computing equipment continue to increase in power density, liquid cooling is also becoming an increasingly important cooling option.
Whether constructing a new server room or upgrading an existing facility, the air circulation system should be customized according to the building structure, server layout, equipment heat load, and future expansion requirements.
Through scientific ventilation and cooling design, data centers can provide a more stable operating environment for servers and network equipment while reducing cooling energy consumption and achieving a better balance between reliability and energy efficiency.
