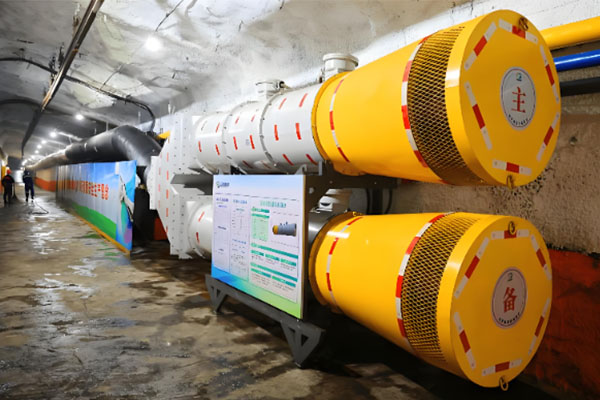

Metal mines typically feature complex underground structures, long tunnels, and increasingly deep mining operations. As mining areas extend deeper underground, natural ventilation alone may no longer provide sufficient fresh air. Drilling, blasting, loading, transportation, and mechanical equipment can also generate dust, exhaust gases, and heat, creating higher ventilation requirements for underground working areas. Therefore, establishing a stable and efficient metal mine air supply system and selecting suitable flexible ventilation ducts are important for improving underground air circulation and ventilation efficiency.
Mining faces in metal mines may be located far from the main ventilation tunnels. As mining operations become deeper, fresh air must travel longer distances to reach working areas. An efficient air supply system uses ventilation fans and ducts to establish a stable airflow route and deliver fresh air to remote mining faces.
Drilling, blasting, ore loading, and transportation can generate dust and equipment exhaust. When air exchange is insufficient, contaminated air may remain in localized areas. A properly designed air supply system can promote air circulation and provide better conditions for subsequent exhaust ventilation.
Deep underground mining areas may experience relatively high temperatures, while heavy machinery can generate additional heat during operation. Continuous fresh air supply promotes airflow and helps improve high-temperature and high-humidity working conditions.
Metal mine tunnels may include curves, slopes, and narrow working areas. Flexible ventilation ducts can be installed according to actual tunnel routes, offering greater flexibility than fixed rigid ventilation systems.
Underground ventilation ducts need to be transported, installed, extended, and repositioned during different stages of mining. Flexible ducts are lightweight and easier to handle and install, making them particularly suitable for ventilation projects where the working face and airflow route change over time.
Temperature, humidity, dust levels, and equipment operating conditions can vary significantly throughout a metal mine. Depending on the application environment, flexible ventilation ducts with wear-resistant, flame-resistant, or anti-static properties can be selected to meet different project requirements.
The air supply route should be planned according to the locations of main transportation tunnels, mining faces, equipment areas, and personnel working zones. Minimizing unnecessary bends and compression can reduce airflow resistance and help deliver more fresh air to the target area.
Ventilation duct diameter directly affects the air delivery capacity of the system. During engineering design, factors such as ventilation distance, airflow requirements, fan performance, and available tunnel space should be considered to select an appropriate duct size and avoid reduced ventilation efficiency caused by improper sizing.
Long-distance air supply systems often require multiple duct sections to be connected. Poorly sealed or fixed joints can result in air leakage. Therefore, installation teams should pay close attention to connection, sealing, and fixing quality to maintain a continuous and efficient air supply passage.
| Application Area | Main Ventilation Requirement | Recommended Air Supply Method | Key Duct Features |
|---|---|---|---|
| Deep mining face | Continuous fresh air supply | Long-distance mechanical air supply | Wear resistant, low air resistance |
| Drilling area | Improve dust conditions | Localized air supply | Flexible, durable |
| Blasting area | Accelerate air exchange | Forced air supply | Flame resistant, wear resistant |
| Underground transportation tunnel | Improve air circulation | Directional air supply | Lightweight, easy installation |
| Equipment operating area | Improve high-temperature conditions | Localized air supply | Stable, durable |
| Narrow tunnel | Flexible fresh air delivery | Flexible air supply | Easy to bend, easy to arrange |
| Temporary construction area | Rapid ventilation setup | Mobile air supply | Lightweight, easy to adjust |
Rocks, mining equipment, and transportation activities may cause wear to ventilation ducts. The duct surface should be inspected regularly for damage, abrasion, or other abnormalities, with timely maintenance when necessary.
Compression, excessive bending, or blockage can reduce airflow efficiency. During operation, duct positions should be adjusted when necessary to maintain a smooth and properly arranged air supply route.
Metal mine working faces continuously change as mining operations progress, so air supply distances and delivery points may also need to be adjusted. Flexible ventilation ducts are convenient to extend, dismantle, and rearrange, making them well suited to dynamic underground engineering environments.
An efficient air supply solution for metal mines should be designed according to mine depth, tunnel structure, working areas, and actual airflow requirements. Flexible ventilation ducts offer advantages such as lightweight construction, flexibility, and easy installation and adjustment. Depending on operating conditions, ducts with wear-resistant, flame-resistant, and anti-static properties can be selected for deep mining faces, drilling areas, blasting zones, underground transportation tunnels, and temporary construction areas.
By properly planning air supply routes, selecting suitable duct specifications, and implementing regular maintenance, mining operators can improve fresh air delivery efficiency and provide more stable airflow support for metal mine ventilation engineering.
