When a fire occurs, smoke can spread faster than flames and may cause poor visibility, high temperatures, and the accumulation of toxic gases. These conditions can seriously affect evacuation and firefighting operations. Therefore, a fire safety smoke exhaust system is an important part of modern building fire protection. By combining mechanical smoke exhaust, natural smoke ventilation, pressurized smoke control, make-up air, and fire protection control systems, smoke can be effectively controlled and removed after a fire, creating a safer environment for evacuation.
According to GB 51251-2017, Technical Standard for Smoke Control and Exhaust Systems in Buildings, building smoke control and exhaust systems should be designed according to building characteristics, occupancy type, and fire smoke development patterns. The system should also cover design, installation, commissioning, acceptance, and maintenance.
Fire smoke can contain high temperatures, toxic gases, and particles that significantly reduce visibility. When large amounts of smoke enter corridors, stairwells, or public areas, people may have difficulty identifying evacuation routes and could be exposed to harmful gases.
A properly designed smoke exhaust system can control smoke within designated areas and discharge it outdoors, helping maintain better visibility and improve evacuation conditions.
A reliable smoke exhaust system is designed not only to support occupant evacuation but also to provide better conditions for firefighters entering the building.
For this reason, smoke prevention and smoke exhaust should be considered as an integrated system based on the building layout rather than simply focusing on the exhaust fan capacity.

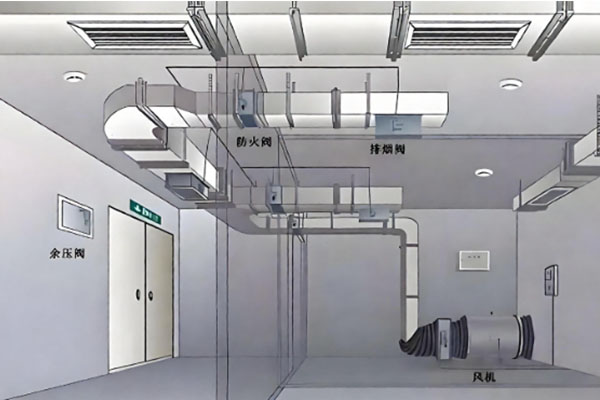

A complete fire safety smoke exhaust system solution generally consists of smoke exhaust fans, smoke exhaust ducts, smoke exhaust outlets, smoke dampers, fire dampers, make-up air equipment, and fire control systems.
| System Component | Main Function | Key Design Considerations |
|---|---|---|
| Smoke Exhaust Fan | Quickly removes fire smoke | Airflow, high-temperature resistance, reliability |
| Smoke Exhaust Duct | Transports smoke | Fire resistance, airtightness, airflow resistance |
| Smoke Exhaust Outlet | Directs smoke into the exhaust system | Location, quantity, coverage |
| Smoke Damper | Controls smoke airflow | Opening/closing and linkage control |
| Fire Smoke Damper | Provides fire protection under high temperatures | Temperature activation and interlocking |
| Make-up Air System | Replaces air removed during smoke exhaust | Airflow balance and air distribution |
| Fire Control System | Provides automatic system control | Alarm, fan, and damper linkage |
Mechanical smoke exhaust systems are generally integrated with automatic fire alarm systems and can support multiple control methods, including control from the fire control room and local manual operation.
Mechanical smoke exhaust systems are widely used in commercial buildings, underground spaces, industrial facilities, underground parking garages, and certain high-rise buildings.
The system uses smoke exhaust fans to generate controlled airflow and transport smoke from the fire zone to the outdoors. During design, engineers need to consider factors such as building area, ceiling height, smoke control zones, and fire load to determine suitable system parameters.
Natural smoke ventilation uses openable windows, smoke vents, and other openings to discharge smoke by utilizing natural airflow and temperature differences between indoor and outdoor environments.
For building areas with suitable natural ventilation conditions, a natural smoke exhaust solution may be considered according to the actual architectural layout and fire protection requirements.
Stairwells, entrance halls, and other evacuation or firefighting access areas require effective protection against smoke infiltration.
A mechanical pressurization system continuously supplies fresh air to create a pressure difference between protected areas and adjacent spaces. This helps reduce the possibility of smoke entering critical evacuation routes.
Depending on building height, occupancy type, and natural ventilation conditions, smoke prevention systems can use either natural ventilation or mechanical pressurized air supply.
Smoke control zones are an important foundation of fire smoke exhaust design. Properly positioned smoke barriers, structural beams, and partitions can help restrict the horizontal spread of smoke and improve the overall effectiveness of the exhaust system.
A well-planned smoke control zone should work together with the building's fire compartments and evacuation routes to ensure effective smoke management during a fire.
The required smoke exhaust airflow has a direct impact on system performance.
Engineers should calculate the required airflow based on factors such as smoke control zone area, ceiling height, heat release rate, and the selected smoke exhaust method. Simply selecting equipment based on the rated airflow of a fan may not provide the required smoke control performance.
During mechanical smoke exhaust, large amounts of air are discharged from the building. Without appropriate make-up air, the smoke exhaust system may not operate as intended.
A properly designed make-up air system can help maintain airflow balance and improve the stability and effectiveness of the smoke control system.
The system needs to respond quickly when a fire is detected.
The automatic fire alarm system can activate smoke exhaust dampers, smoke exhaust fans, and make-up air equipment according to the fire signal, allowing the smoke exhaust system to enter emergency operation quickly.
Reliable linkage between fire detection, dampers, fans, and control equipment is essential for achieving effective emergency response.
Fire safety smoke exhaust system solutions can be applied to a wide range of buildings and industrial environments, including:
l Commercial complexes
l High-rise office buildings
l Underground parking garages
l Metro stations and underground spaces
l Industrial factories
l Warehouses and logistics centers
l Hotels and large public buildings
l Hospitals, schools, and other high-occupancy facilities
Different buildings require different smoke control strategies. The system should be customized according to building structure, occupancy density, fire risk, evacuation requirements, and equipment layout.
A smoke exhaust system should not be designed independently from the overall fire protection plan.
During the design stage, engineers should consider the relationship between fire compartments, smoke control zones, evacuation routes, fire protection equipment, and HVAC systems.
An integrated design approach can help avoid conflicts between different building systems and improve overall fire safety.
Smoke exhaust fans, ducts, dampers, and control equipment should meet applicable fire safety requirements.
In addition to airflow capacity, factors such as high-temperature resistance, operating reliability, equipment durability, installation conditions, and maintenance requirements should also be considered.
After installation, the fire smoke exhaust system should undergo equipment testing, system commissioning, linkage testing, and acceptance procedures.
Regular inspection and maintenance are also necessary to ensure that fans, dampers, control devices, and other components remain operational when an emergency occurs.
An efficient fire safety smoke exhaust system is not only an important part of building ventilation engineering but also a critical component of the overall fire safety system.
From smoke control zone planning and smoke exhaust airflow calculations to the selection of smoke exhaust fans, ducts, dampers, make-up air systems, and fire control equipment, every component can influence the effectiveness of smoke management.
For this reason, building projects should develop professional fire smoke exhaust system solutions based on their specific architectural characteristics and fire protection requirements. Through integrated smoke prevention, smoke exhaust, make-up air, and automatic control systems, buildings can achieve better smoke control performance and provide safer conditions for occupant evacuation and firefighting operations.
