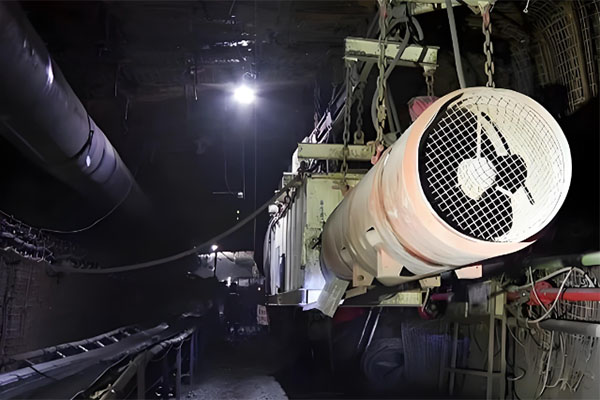

Underground coal mining areas are relatively enclosed. During coal extraction, tunneling, blasting, transportation, and mechanical operations, dust, heat, and exhaust gases can accumulate in the working environment. If contaminated air cannot be removed effectively, underground air quality may deteriorate and operational risks may increase. Therefore, establishing a stable and efficient underground coal mine exhaust ventilation system is an important part of modern mine ventilation engineering. By combining flexible ventilation ducts, ventilation fans, and a properly designed supply and exhaust layout, contaminated air can be effectively removed from underground working areas, supporting more stable air circulation.
Coal mining operations can generate dust, equipment exhaust, and other airborne pollutants that need to be controlled. In particular, if ventilation is insufficient around tunneling faces and transportation areas, contaminated air may accumulate locally. A properly designed exhaust ventilation system can continuously remove polluted air and improve underground air circulation.
As mining operations extend deeper underground, temperature and humidity may increase. Mining machinery can also generate considerable heat during operation. Continuous air exchange helps remove part of the accumulated heat and moisture, creating a more comfortable working environment for underground personnel.
Underground coal mine tunnels can have complex structures, while tunnel length, width, and operating conditions may vary significantly between areas. The exhaust ventilation system needs to be arranged according to actual site conditions so that contaminated air can be effectively removed from specific working zones.
Underground coal mine tunnels may include curves, changes in elevation, and restricted spaces. Flexible ventilation ducts offer good bending performance and can be installed along different tunnel routes, making them suitable for complex underground environments.
Compared with traditional rigid ventilation ducts, flexible ducts are generally lighter and easier to transport, install, and reposition underground. For projects where exhaust routes need to be changed as mining operations progress, flexible ventilation ducts can help reduce installation and maintenance difficulties.
Underground mining environments often contain dust, rock particles, and equipment that may cause physical impact or abrasion. Therefore, ventilation ducts need suitable wear resistance for demanding operating conditions. Selecting flexible ventilation ducts designed for mining applications can help improve system durability.
Safety is a critical consideration in coal mine ventilation engineering. Depending on the application environment, flexible ventilation ducts with flame-resistant and anti-static properties can be selected to improve the adaptability and safety performance of the exhaust ventilation system.
The exhaust duct route should be planned according to the locations of working faces, transportation tunnels, equipment areas, and main ventilation tunnels. Reducing unnecessary bends and obstructions can help lower airflow resistance and improve exhaust efficiency.
Different mining areas have different exhaust requirements. Ventilation duct diameter should be selected based on factors such as ventilation distance, fan performance, operational scale, and actual air exchange requirements. An undersized duct may increase airflow resistance, while an oversized duct can increase material and installation costs.
Flexible ventilation ducts are normally connected and extended through dedicated joints or connection systems. Poor sealing at connection points can cause air leakage and reduce actual exhaust capacity. During installation, particular attention should be given to joint fixing, sealing, and duct support.
| Application Area | Main Air Quality Issues | Recommended Exhaust Method | Key Duct Features |
|---|---|---|---|
| Tunneling face | Dust and exhaust gas accumulation | Local mechanical exhaust | Wear resistant, flame resistant |
| Coal mining area | Dust and increased heat | Continuous mechanical exhaust | Efficient, durable |
| Transportation tunnel | Equipment exhaust and dust | Directional exhaust | Flexible, easy installation |
| Equipment operating area | Heat and exhaust gases | Local exhaust ventilation | Wear resistant, stable |
| Blasting area | Smoke and contaminated air | Rapid smoke extraction | Flame resistant, durable |
| Deep underground area | High temperature and insufficient airflow | Long-distance mechanical exhaust | Low air resistance, wear resistant |
| Temporary construction area | Frequently changing ventilation routes | Mobile exhaust ventilation | Lightweight, easy to adjust |
During long-term operation, ventilation ducts may be damaged or worn by rocks, mining equipment, or transportation activities. The duct body, connection points, and support locations should be inspected regularly, and any damage should be repaired promptly.
Severe bending, compression, or blockage of ventilation ducts can reduce airflow efficiency. During routine maintenance, the duct position should be adjusted when necessary to keep the exhaust passage unobstructed and properly arranged.
Coal mine working faces change as mining operations progress, meaning existing exhaust routes may also need to be adjusted. Flexible ventilation ducts are convenient to extend, dismantle, relocate, and rearrange, making them suitable for dynamic underground engineering environments.
An underground coal mine safety exhaust ventilation solution should be designed according to mine structure, working areas, ventilation distance, and actual air quality conditions. With their lightweight construction, flexibility, wear resistance, and optional flame-resistant and anti-static properties, flexible ventilation ducts can be used in tunneling faces, transportation tunnels, deep mining areas, and temporary construction zones.
By properly planning exhaust routes, selecting suitable ventilation duct specifications, and implementing regular inspection and maintenance, mining operators can improve underground air exchange efficiency and provide more stable exhaust ventilation support for coal mine ventilation engineering.
