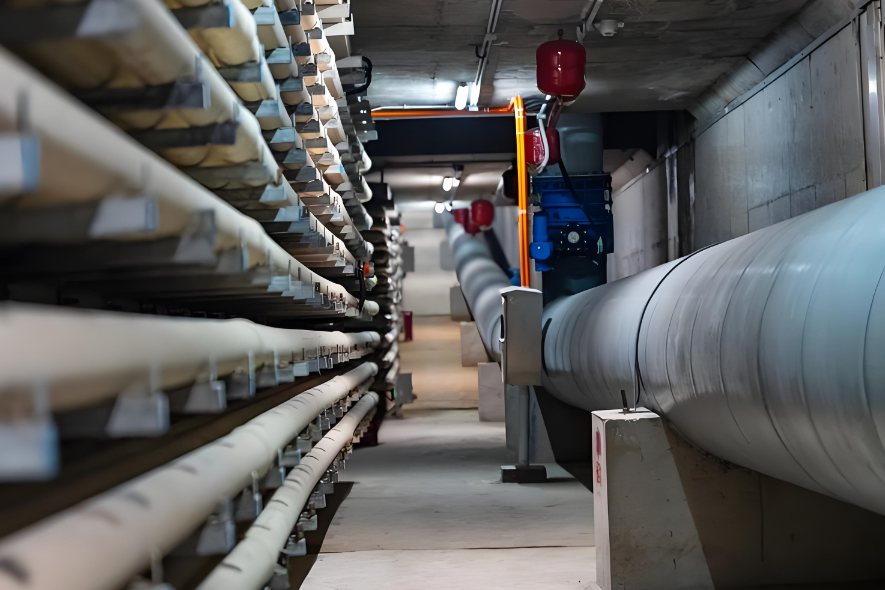

Underground Utility Tunnel Ventilation Solutions

As urban underground utility tunnels continue to expand, power cables, communications lines, water supply and drainage pipelines, gas pipelines, and other municipal infrastructure are increasingly installed in centralized underground corridors. Compared with traditional pipeline installation methods, underground utility tunnels can reduce repeated road excavation and improve infrastructure maintenance efficiency. However, their enclosed and elongated structures also create higher requirements for ventilation systems.

An underground utility tunnel ventilation solution needs to address more than routine air exchange. It must also consider cable heat dissipation, indoor air quality, equipment operation, and exhaust requirements under abnormal conditions such as fire. A properly designed ventilation system is essential for maintaining the long-term safe and stable operation of underground utility tunnels.

Why Do Underground Utility Tunnels Need Professional Ventilation Systems?

Removing Heat Generated by Cables and Equipment

Power cables, transformers, and other electrical equipment generate heat during continuous operation. If this heat accumulates inside the tunnel, the internal temperature can rise and affect the operating conditions of cables and equipment.

The ventilation system should therefore provide an appropriate airflow rate based on tunnel dimensions, length, utility types, and heat generation. Effective ventilation helps remove excess heat and maintain a suitable operating environment.

Improving Underground Air Quality

Underground utility tunnels are relatively enclosed spaces. Routine inspections, equipment operation, and certain types of pipelines may affect internal air quality. Continuous ventilation can reduce the accumulation of hot air and potential pollutants while providing a more suitable working environment for inspection and maintenance personnel.

Handling Special Utility Compartments

Different tunnel compartments have different ventilation requirements. Gas pipeline compartments and areas containing sewage pipelines generally require stricter mechanical ventilation.

For example, ordinary utility tunnel compartments may require a certain minimum number of air changes per hour, while compartments with special environmental risks may require higher ventilation rates. Therefore, ventilation design should be adapted to the specific characteristics of each compartment.

Key Design Principles for Underground Utility Tunnel Ventilation

Select the Appropriate Ventilation Method

Depending on the tunnel size, utility types, underground structure, and surrounding environment, different ventilation methods can be selected.

For ordinary power or combined utility compartments, natural air intake combined with mechanical exhaust may help reduce energy consumption. For gas pipeline compartments and other areas with higher air-quality requirements, mechanical supply and mechanical exhaust are generally more suitable.

Divide the Tunnel into Reasonable Ventilation Sections

Long underground utility tunnels cannot rely on a small number of fans to provide effective ventilation throughout the entire tunnel. The ventilation system should be divided into appropriate sections according to tunnel length, fan capacity, construction conditions, maintenance requirements, and fire compartmentation.

Proper ventilation zoning can shorten the airflow path, reduce system resistance, and make equipment maintenance and operation more convenient.

Key Equipment for Underground Utility Tunnel Ventilation Solutions

An underground utility tunnel ventilation system generally consists of ventilation fans, air ducts, air inlets, exhaust outlets, fire dampers, control systems, and related auxiliary equipment. Each component should be selected according to the actual operating conditions.

Ventilation and Fire Safety in Underground Utility Tunnels

Shut Down Relevant Equipment During a Fire

Underground utility tunnels may contain power cables, gas pipelines, and other infrastructure with different fire risks. When a fire occurs, the ventilation system needs to respond according to the fire control strategy.

The ventilation equipment and fire dampers in the affected compartment and related areas should be coordinated with the fire protection system. Automatic control helps prevent uncontrolled airflow from interfering with fire management.

Provide Post-Fire Smoke Exhaust

After a fire, smoke and high-temperature air may remain inside the utility tunnel. Therefore, the ventilation system should also consider post-fire smoke exhaust.

The ventilation system should be connected with fire alarms, monitoring systems, and automatic controls so that fans and dampers can operate according to predefined procedures under different emergency conditions.

Balancing Energy Efficiency and Long-Term Maintenance

Underground utility tunnel ventilation systems may operate for long periods, so design considerations should go beyond initial equipment costs. Long-term energy consumption, equipment reliability, and maintenance requirements are equally important.

Energy consumption can be reduced by dividing the tunnel into suitable ventilation zones, selecting high-efficiency fans, and using variable or demand-based ventilation control. This avoids operating ventilation equipment continuously at full capacity when it is not necessary.

For large underground utility tunnel projects, an intelligent monitoring system can also be integrated to monitor temperature, gas concentration, fan operating status, and other parameters in real time. When the temperature rises or abnormal air conditions are detected, the system can automatically activate the appropriate ventilation equipment.

Ventilation Solutions for Different Underground Infrastructure Projects

Ventilation design for underground utility tunnels is not simply a matter of installing several fans. It requires comprehensive consideration of tunnel structure, compartment types, utility layouts, ventilation zones, fire protection requirements, and operating conditions.

A properly designed underground utility tunnel ventilation solution can improve air circulation, remove excess heat from electrical equipment, control potential pollutants, and provide a safer environment for routine inspection and emergency response.

For urban underground utility tunnels, underground pipeline corridors, and other enclosed infrastructure projects, professional ventilation systems can provide reliable environmental control while helping improve operational efficiency and reduce long-term energy consumption.

As cities make greater use of underground spaces, the importance of reliable underground utility tunnel ventilation systems continues to grow. An effective underground utility tunnel ventilation solution should address normal air exchange, equipment heat dissipation, special gas control, fire safety, emergency smoke exhaust, and energy-efficient operation.

By combining appropriate airflow organization, high-efficiency ventilation equipment, intelligent monitoring, and automated control, underground utility tunnels can achieve a safer, more stable, and more efficient operating environment.
