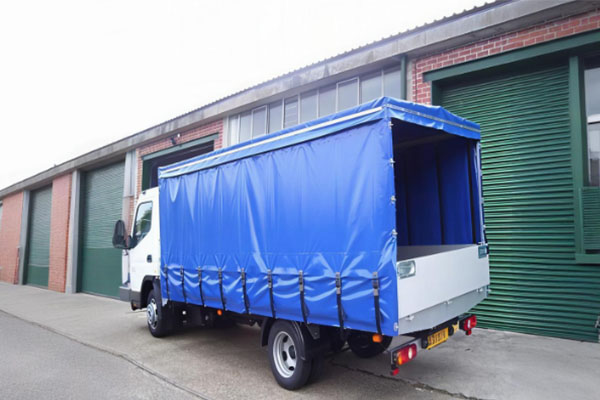

Truck tarpaulin is widely used for cargo covering, waterproofing, dust protection, and cargo protection during transportation. Different truck models, cargo bed structures, and transportation requirements require different tarpaulin dimensions. Therefore, when ordering custom truck tarpaulin, buyers need to provide accurate size parameters in addition to specifications such as PVC material, weight, and thickness.A well-designed tarpaulin size can make installation easier, reduce material waste, and improve stability during transportation. For companies purchasing truck tarpaulin in bulk or for long-term use, preparing complete dimensional information before customization can help suppliers produce samples and finished products more accurately.
Cargo bed length is one of the most important parameters for determining the overall dimensions of truck tarpaulin.
The actual length should be measured from the front to the rear of the cargo bed. Buyers should also consider whether the tarpaulin needs to extend beyond the front and rear edges.
If the tarpaulin needs to cover the roof and both sides of the cargo bed, length alone is not sufficient. Cargo bed width and height must also be considered when calculating the final unfolded dimensions.
Cargo bed width determines the horizontal coverage of the truck tarpaulin. Flatbed trucks, side-panel trucks, and other truck structures may require different amounts of side coverage.
If the tarpaulin needs to hang down along both sides, buyers should also provide the required side coverage height to prevent the finished tarpaulin from being too small.
Cargo bed height is an important parameter that is sometimes overlooked during truck tarpaulin customization.
For trucks equipped with side panels, vertical posts, or other fixed structures, the actual height from the bottom of the cargo bed to the top should be measured accurately.
If cargo height varies during transportation, the maximum expected loading height should also be provided when determining tarpaulin dimensions.
Buyers should specify whether the tarpaulin needs to cover only the top of the cargo, the top and both sides, or the entire cargo.
Different covering methods directly affect the final length and width of the tarpaulin.
For oversized cargo, buyers should also consider whether different tarpaulin sections need to overlap and whether additional coverage is required at the front or rear.
Eyelets are important fastening points for truck tarpaulin. During customization, buyers should provide the required number of eyelets, spacing, and distance from the edges.
If the tarpaulin will be secured using hooks, ropes, or elastic straps, the eyelet specifications and layout should be designed according to the actual fastening method.
A suitable eyelet layout can help distribute tension more evenly and improve installation stability.
The edges of truck tarpaulin are subject to considerable tension during installation. Reinforcement is therefore commonly added to these areas.
When ordering custom tarpaulin, buyers can specify which edges require reinforcement and whether reinforcement tape, ropes, or other structures are needed.
After determining the dimensions, buyers should select suitable weight and thickness according to the transportation environment.
For short-term general cargo covering, flexibility and waterproofing may be the main considerations. For long-distance transportation, abrasion resistance, tear resistance, and weather resistance should also be evaluated.
NSTARP offers PVC Tarpaulin in different specifications, including 18oz, 19oz, 20oz, 22oz, 23oz, 24oz, 28oz, 30oz, and 32oz options for different applications.
Before production, buyers should confirm whether the tarpaulin requires heat sealing, welding, folded edges, eyelets, or reinforcement tape.
Different processing methods can affect the final dimensions and manufacturing process.
Companies that want consistent fleet branding can also provide specific color requirements, surface treatments, and printing specifications.
For truck tarpaulin used for brand promotion, buyers should provide the required logo size, position, and printing area.
Do not estimate tarpaulin dimensions solely based on the truck model.
Different manufacturers, vehicle configurations, and modified cargo beds may have different dimensions. Measurements should therefore be taken from the actual truck whenever possible.
Truck tarpaulin is usually secured with eyelets, ropes, hooks, or other fastening systems. It should not simply be cut according to the exact length and width of the cargo bed.
Appropriate allowances should be considered according to the covering method, edge drop, fastening structure, and installation requirements.
When a company needs custom tarpaulin for multiple trucks, a consistent measurement method should be used.
Different truck models or cargo bed specifications should be recorded separately. This can reduce dimensional errors and make bulk production and inventory management more efficient.
Before requesting a quotation or placing an order with a PVC tarpaulin supplier, buyers can prepare the following information:
Cargo bed length, cargo bed width, cargo bed height, maximum cargo height, coverage area, unfolded tarpaulin dimensions, eyelet quantity, eyelet spacing, edge reinforcement method, tarpaulin weight, thickness, color, printing requirements, and fastening method.
The more complete the information, the easier it is for the supplier to accurately determine material consumption, processing requirements, and finished dimensions.
Custom truck tarpaulin is not simply a piece of PVC material cut to size. It needs to be designed according to truck dimensions, cargo height, coverage method, and fastening structure.
Tarpaulin that is too small may not completely cover the cargo, while excessively large tarpaulin can increase material weight and make installation more difficult.
NSTARP PVC Tarpaulin uses high-strength polyester yarn and can be processed through coating, laminating, and heat-sealing processes to meet different truck transportation and cargo covering requirements.
Before mass production, buyers are advised to provide complete vehicle dimensions and structural information and confirm the unfolded dimensions, eyelet positions, and edge reinforcement through sample testing.
Accurate measurement and practical structural design can help businesses obtain custom truck tarpaulin that is better suited to their actual transportation requirements.
