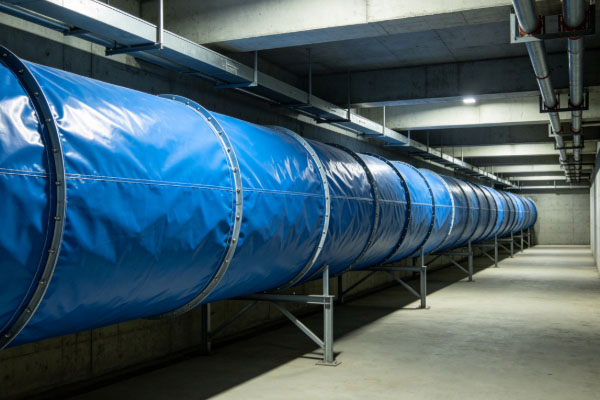

Are The Heat-Sealed Seams of PVC Tarpaulin Ventilation Ducts Prone To Cracking?

PVC tarpaulin ventilation ducts are usually manufactured from PVC-coated fabric. The duct sections need to be joined through heat sealing, welding, or other connection processes to form a continuous tubular structure. Heat-sealed seams are important connection areas of the duct, and their strength directly affects sealing performance, tensile strength, and long-term service condition. Under normal conditions, if the PVC tarpaulin material is suitable, the heat-sealing temperature is stable, and the pressure and speed are properly controlled, the seams are not likely to develop obvious cracks. However, if the processing parameters are unsuitable, or if the duct is exposed to long-term stretching, friction, bending, and high temperatures during installation and use, the heat-sealed areas may gradually develop delamination, lifted edges, openings, or even complete cracking.

Therefore, determining whether the heat-sealed seams of PVC tarpaulin ventilation ducts are prone to cracking requires more than evaluating the heat-sealing process itself. Material quality, welding parameters, seam structure, operating environment, and installation loads should also be considered. Large-diameter flexible ventilation ducts are particularly affected by internal air pressure and periodic movement during operation, so the seam areas need to maintain sufficient connection strength.

Causes of Cracking in Heat-Sealed Seams of PVC Tarpaulin Ventilation Ducts

The heat-sealing process for PVC tarpaulin uses heat to bring the PVC coating on the material surface to a suitable bonding condition, followed by pressure to join the two layers of material. When temperature, pressure, equipment speed, and other parameters are properly controlled, the welded area can form a relatively stable connection. However, material batches, thicknesses, PVC coating formulations, and equipment performance may vary during actual processing. Therefore, heat-sealing parameters need to be adjusted according to the specific material. If the parameters have not been properly tested, insufficient seam strength may result.

Effect of Heat-Sealing Temperature on PVC Material Seam Strength

When the heat-sealing temperature is too low, the PVC coating may not reach a suitable bonding condition, preventing the two layers from forming a sufficient connection. The seam may then peel apart when subjected to tensile force. Excessively high temperatures can also cause problems. The PVC coating on the material surface may be overheated, resulting in discoloration, thinning, burning, or reduced performance. Therefore, a higher heat-sealing temperature is not necessarily better. It needs to be adjusted according to the thickness of the PVC tarpaulin, coating structure, and equipment performance.

Relationship Between Heat-Sealing Speed and Seam Bonding Performance

The operating speed of the heat-sealing equipment affects the amount of heat actually received by the material. If the equipment moves too quickly, the heat received per unit length may be insufficient, resulting in incomplete welding in some areas. If the speed is too slow, the material may be exposed to high temperatures for too long, causing damage to the PVC coating. During production, suitable speed should be determined through trial welding, while stable equipment operation should be maintained to reduce significant differences in seam strength along the same joint.

Effect of PVC Tarpaulin Overlap Width on Seam Stability

During heat sealing, two pieces of PVC tarpaulin need to maintain an appropriate overlap width. If the overlap area is too narrow, the effective load-bearing area of the seam is reduced. If the material edges do not fully enter the effective heat-sealing area, partial weak welding may occur. For large-diameter ventilation ducts, the seams also need to withstand changes in load caused by the duct's own weight, internal air pressure, and installation supports. Therefore, the overlap should remain flat during processing, and wrinkles should be prevented from entering the heat-sealing area.

Effect of Installation Loads on Heat-Sealed Seams

Even when the heat-sealing quality is qualified, abnormal stress may still occur if the duct remains excessively stretched, twisted, or sharply bent after installation. This is particularly important at fan interfaces, equipment connections, and hanging strap fixing points. If the duct is too short and is forcibly stretched during installation, the seams may remain under continuous tension. As operating time increases, localized stress may gradually develop into cracks. Therefore, the duct should remain in a natural condition during installation, with appropriate supports and connection structures provided.

Quality Requirements for the Heat-Sealing Process of PVC Tarpaulin Ventilation Ducts

The heat-sealing quality of PVC tarpaulin ventilation ducts is closely related to equipment parameters. During processing, temperature, pressure, and welding speed generally need to be adjusted according to the material thickness, PVC coating characteristics, and equipment type. PVC tarpaulin formulations used by different manufacturers are not necessarily identical. Even when two materials have the same thickness, their suitable heat-sealing parameters may differ. Therefore, trial welding and seam strength testing before mass production are important for confirming the compatibility between the material and equipment and preventing large-scale seam problems during formal production.

PVC Material Surface Condition and Heat-Sealing Performance

Before heat sealing, the material surface should be clean and dry, without obvious oil, dust, or other contaminants that could affect the bonding of the PVC coating. If contaminants are present on the material surface, even when the equipment reaches the set temperature, the bonding between the two PVC-coated layers may still be affected. Processing personnel should also check the material for obvious creases and deformation to prevent wrinkles from entering the heat-sealing area.

Control of Heat-Sealing Temperature, Pressure, and Speed

Heat-sealing temperature, pressure, and equipment speed generally need to be adjusted together. Seam quality should not be assessed by changing only one parameter. Before production, trial welding can be used to determine suitable processing conditions, followed by fine adjustments according to material thickness and actual equipment performance. During mass production, parameters should remain as stable as possible, and necessary checks should be performed on different material batches to reduce changes in seam strength caused by material differences.

Heat-Sealed Seam Width and Connection Strength Requirements

A heat-sealed seam with a smooth appearance does not necessarily mean that its internal bonding strength is fully qualified. During inspection, check whether the seam width is uniform and whether the welding area contains obvious bubbles, wrinkles, burning, incomplete welding, or localized lifted edges. If one section of the seam shows a noticeable color change or continuous peeling along the edge, further inspection is also required. For industrial ventilation ducts that operate for long periods, peel or tensile testing can also be carried out according to the company's quality standards to confirm whether the connection area meets the service requirements.

Effect of the Operating Environment on PVC Tarpaulin Ventilation Duct Seams

PVC tarpaulin heat-sealed seams can maintain good stability under normal conditions. However, if they are exposed to high temperatures, strong friction, frequent vibration, or continuous tension for long periods, both the material and seams will experience greater stress. For example, exhaust, welding fume collection, and dust-conveying ducts in industrial facilities may start and stop frequently. Each operating cycle can cause a certain degree of deformation and movement in the duct. Repeated changes over time can subject the seams to cyclic stress. Therefore, the installation method and support structure can also affect the service condition of heat-sealed seams.

Effect of High Temperatures on PVC Heat-Sealed Seams

If the temperature of the conveyed gas remains close to or exceeds the allowable temperature range of the PVC material for an extended period, the PVC coating may soften, age, or undergo performance changes, which can also affect the seam areas. Therefore, the temperature resistance rating of the PVC tarpaulin should be confirmed before use to ensure that it is suitable for the actual operating temperature. For equipment with temporary high-temperature airflow, the duration of the temperature exposure and the distance between the duct and heat source should also be considered rather than relying only on the average ambient temperature.

Seam Damage Caused by Mechanical Friction and Duct Vibration

PVC tarpaulin ventilation ducts may experience slight movement during operation. If the duct continuously rubs against walls, metal supports, equipment housings, or other pipelines, wear may gradually develop near the seams. High-frequency vibration may also cause repeated stress at fixing points. Therefore, an appropriate clearance should be maintained between the duct and surrounding structures during installation, and hanging straps, supports, and fasteners should be checked for stability.

Effect of Long-Term Stretching and Bending on Seam Stability

Forcing a duct to stretch during connection because it is too short, or using an excessively small bending radius, may cause the heat-sealed seams to remain under inappropriate stress for long periods. This is particularly important for large-diameter flexible ducts. Because their own weight can be significant, improper support spacing may cause sagging and increase stress around the seams. During installation, the support method should be determined according to the duct diameter, length, and equipment interface position to prevent unnecessary additional loads from being transferred to the seams.

Common Questions

Are heat-sealed seams prone to cracking during normal use?

Under normal conditions, if the PVC tarpaulin material is suitable, the heat-sealing parameters are appropriate, the seam structure is properly formed, and the duct is not subjected to excessive stretching or friction during installation, heat-sealed seams will not crack easily. Seam stability depends on the material, processing conditions, and operating environment, so service life cannot be determined solely by the heat-sealing method.

What usually causes an opening to appear immediately after heat sealing?

If an opening appears immediately after processing, particular attention should be given to the heat-sealing temperature, equipment speed, pressure, and material surface condition. Oil, dust, or insufficient heat-sealing temperature may prevent adequate bonding. If similar problems occur over a large area, mass production should be suspended and trial welding should be performed again.

Should a lifted seam edge be repaired promptly?

This should be determined according to the degree, location, and development of the lifted area. If there is only slight localized lifting, the area can first be inspected. If the lifted area continues to expand or has already caused air leakage or material delamination, timely repair is required. Seams located at fan interfaces, equipment connections, and major load-bearing areas require particularly careful inspection.

How can the risk of cracking in PVC tarpaulin heat-sealed seams be reduced?

Control is required in three stages: material selection, heat-sealing processing, and installation. Before processing, confirm that the PVC tarpaulin is suitable for the heat-sealing process. During production, maintain stable temperature, pressure, and speed and check the overlap width. During installation, avoid excessive stretching, sharp bends, and insufficient support. Regular inspection of the seam condition during operation can further reduce the possibility of abnormal cracking.

Heat-sealed seams in PVC tarpaulin ventilation ducts are not inherently prone to natural cracking under normal processing conditions. Cracking is more commonly associated with unsuitable heat-sealing parameters, improper material surface preparation, insufficient overlap width, and long-term mechanical stress. During processing, the heat-sealing temperature, equipment speed, and pressure should be adjusted according to the thickness and coating characteristics of the PVC tarpaulin, and trial welding should be used to confirm the connection quality. During mass production, equipment parameters should remain stable to avoid significant differences in seam strength between products.

After the duct is installed, the seams should also be inspected regularly. Inspection should focus on whether the heat-sealed edges show lifting, delamination, cracks, or wear, while also checking for air leakage and abnormal movement during operation. If the area near a seam is subjected to long-term pressure from hanging straps, friction against equipment, or duct stretching, the installation condition should be adjusted promptly. For applications involving high-temperature exhaust, oil mist, dust, or other demanding conditions, the material and temperature resistance of the PVC tarpaulin should also be confirmed to ensure suitability for the actual operating environment. Only when the material, heat-sealing process, and installation loads are properly controlled can the risk of seam cracking be reduced while maintaining the sealing performance and normal ventilation of PVC tarpaulin ventilation ducts.
