The length of tarp tie-down ropes needs to be determined according to the cargo height, tarp drop length, spacing between fixing points, and vehicle structure. If the tie-down ropes are too short, the tarp may not be able to connect smoothly to hooks, rope loops, or frame fixing points after covering the cargo. If they are too long, excess rope may drag on the ground, become tangled, or loosen during transportation. Therefore, when customizing PVC tarps, truck tarps, and transport tarps, the tie-down rope length should be planned together with the tarp dimensions.
In actual use, tie-down ropes generally need a certain amount of operating allowance rather than being made just long enough to connect. After the tarp is affected by cargo height, loading shape, and wind, its covering position may shift slightly. The tie-down ropes also need to provide enough length for tightening, adjustment, and repeated fastening. A reasonable reserved length makes tarp installation easier while helping maintain a stable covering surface. For truck tarps that are frequently installed and removed, the operating habits of drivers or loading personnel should also be considered so that every fixing point can be connected smoothly.
Tarp tie-down ropes are generally installed along the tarp edge, at rope loops, or on reinforced straps. Therefore, the actual coverage area of the tarp should be confirmed before calculating the rope length. For example, if the cargo is 2.4 meters wide and 1.8 meters high, and the tarp needs to cover the top of the cargo and extend down both sides of the truck bed, the tie-down rope cannot be calculated based only on the 2.4-meter width. The hanging sections on both sides and the distance between fixing points also need to be considered. The purpose of the tie-down rope is to connect the tarp to the fixing point, so the actual required length depends on the distance between the rope loop and the frame hook.
In general, a certain allowance should be added to the actual connection distance when calculating the tie-down rope length. A common practice is to reserve approximately 20–40 cm of operating length at each fixing point. The specific amount can be adjusted according to the tarp dimensions, vehicle structure, and fastening method. If the fixing points are relatively far apart or the tarp needs to pass through a large hanging section, the reserved length can be increased appropriately. For tarps used on large trucks and semi-trailers, the truck bed height and fixing structure should also be considered separately.
Small tarps are commonly used for light trucks, pickup trucks, equipment covering, or temporary rain protection. Since the tarp dimensions are relatively small and the distance between fixing points is usually short, the tie-down ropes do not need excessive reserved length.
If the fixing points are close together, approximately 20–30 cm of operating length can be reserved.
If the rope needs to pass around the edge of the cargo or connect to the vehicle frame, the length should be increased appropriately.
For tarps that are frequently installed and removed, the rope should not be made just long enough to reach the fixing point.
Although small tarps are relatively lightweight, the tie-down ropes should not be too short. Space is needed for tying knots, passing through loops, or connecting fasteners. Otherwise, the rope may not reach the fixing hook during actual installation.

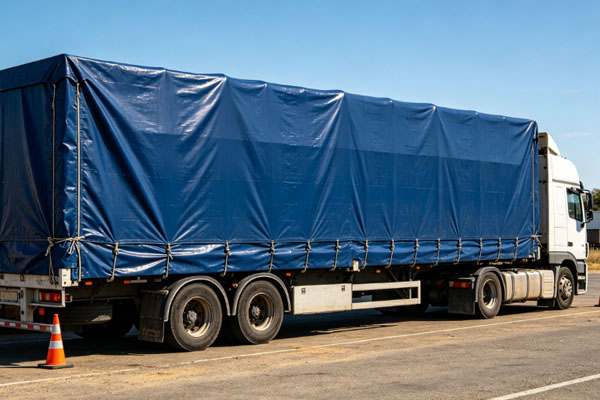

Truck tarps are usually larger, and the tie-down rope length changes according to the drop length and truck bed structure. For example, after a tarp covers the top of a truck bed, the two sides may hang down 50 cm, 80 cm, or even longer. The tie-down rope then needs to cross this distance before connecting to the vehicle frame. For this type of product, using one uniform rope length is not recommended. The fixing structures at the middle, rear, and front of the truck bed may differ, so different rope lengths can be set according to the actual installation positions. If the tarp is long, the distance from each rope loop to its corresponding fixing point can be measured individually, followed by the addition of a consistent operating allowance. This is more accurate than estimating the rope length based only on the overall tarp dimensions.
When the tie-down rope is too short, the most direct problem is that the connection cannot be completed. After the tarp covers the cargo, if the rope loop is still some distance from the frame hook, forcibly stretching the rope can concentrate stress on the rope loop, reinforced strap, or even the tarp edge. After long-term use, deformation or tearing may occur around the fixing area. A rope that is too short can also reduce installation efficiency. This is especially important when cargo height changes, as the same tarp may not be able to be secured properly. Therefore, tie-down ropes should not be made based on the principle of being “just long enough.”
Tie-down ropes are not necessarily better when they are longer. Excessive reserved length creates long loose sections after fastening. During transportation, these loose sections may come into contact with the underside of the vehicle, wheels, or other moving components, and they may also swing under the influence of wind. A reasonable rope length should provide enough allowance to complete the connection, tightening, and knotting while leaving only the necessary excess length. For tarps using fasteners, hooks, or quick-connect structures, the final rope length should also be determined according to the dimensions of the fasteners.
Generally, approximately 20–40 cm can be reserved based on the actual connection distance. Small tarps can use a smaller allowance, while truck tarps require adjustments according to the fixing point distance, drop length, and fastening method.
Not necessarily. Increasing the overall tarp size does not mean that the distance between every fixing point will increase. The tie-down rope length is mainly related to the rope loop position, frame hook position, drop height, and fastening method. Therefore, the length should be calculated according to the actual installation position.
If the vehicle structure is uniform and the fixing points are at the same height, the same rope length can be used. However, for truck tarps where fixing points have different heights or positions, it is more suitable to adjust the rope length according to the actual distance. This can reduce problems caused by ropes being too long or too short.
If tie-down ropes also need to be customized, it is recommended to provide the cargo length, width, and height, as well as the tarp drop length, rope loop spacing, and vehicle fixing point positions. More complete information makes it easier to determine the tie-down rope length and rope loop layout accurately.
The length of tarp tie-down ropes directly affects installation convenience, fixing stability, and whether the tarp can maintain proper coverage during transportation. When determining the rope length, the tarp dimensions, cargo height, drop length, rope loop spacing, and vehicle fixing points should be measured together rather than estimating the length only from the tarp length and width. For standard truck tarps, approximately 20–40 cm can be added to the actual fixing distance as an operating allowance. If cargo height varies significantly, fixing points are far apart, or the rope needs to pass through the vehicle frame or hooks, additional reserved length may be required.
A tie-down rope that is too short can make installation difficult and create concentrated stress, while excessive length can create unnecessary loose sections. Therefore, the appropriate length should allow the rope to connect, tighten, and fasten smoothly while retaining only the necessary operating allowance. When customizing PVC tarps or transport tarps, it is recommended to provide the cargo length and width together with the cargo height, drop dimensions, vehicle type, rope loop spacing, and fixing positions. Using these details to determine the tie-down rope length helps coordinate the tarp dimensions, rope loop layout, and fastening method, while also making subsequent mass production and repeat orders easier.
