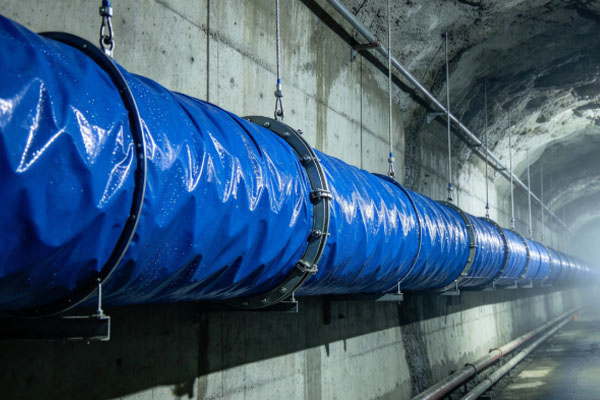

PVC tarpaulin ventilation ducts are commonly used in industrial plants, underground spaces, humid workshops, construction sites, and other locations where air transportation is required. In high-humidity environments, water vapor in the air can easily condense on the inner walls of ducts, at joints, and in localized low-temperature areas. If ventilation ducts remain damp for extended periods, the coating quality, seam sealing performance, and base fabric structure must withstand continuous exposure to moisture. PVC tarpaulin is typically made by combining a textile base fabric with a polyvinyl chloride (PVC) coating. The base fabric provides the necessary tensile strength and structural support, while the PVC coating covers the pores on the fabric surface, reduces moisture penetration, and improves the material's surface protection.
Different products vary in base fabric fibers, fabric density, coating thickness, coating adhesion, and surface treatment processes, resulting in differences in moisture resistance. Material selection for high-humidity environments should be based on the actual operating conditions of the duct. In addition to confirming the fabric's waterproof performance, it is also necessary to consider whether the duct continuously transports warm, humid air, whether condensation is likely to occur, whether frequent bending and storage are required, and whether corrosive gases or other special media are present inside the duct. Combining material specifications with the operating environment allows the appropriate PVC tarpaulin grade to be determined more accurately.
In high-humidity environments, the waterproof performance of PVC tarpaulin is a key indicator that should be checked first during material selection. A high-quality coating should have good continuity and adhesion to reduce the possibility of moisture penetrating through the duct wall into the base fabric. However, it is important to note that a waterproof fabric surface does not guarantee that the finished duct will remain completely sealed under prolonged damp conditions, repeated bending, or stress on the seams.
Coating Continuity: Check for pinholes, cracks, blistering, or delamination on the surface to prevent localized defects from becoming pathways for moisture to enter the base fabric.
Coating Adhesion: Pay attention to the bonding strength between the PVC coating and the textile base fabric to reduce the risk of coating separation after repeated bending.
Water Resistance and Mold Resistance: Depending on the duration and severity of moisture exposure, confirm whether the product has undergone relevant water resistance or mold resistance testing. Waterproof performance should not be equated directly with mold resistance.
If the ventilation duct is exposed to condensation for extended periods or needs to operate continuously in damp areas, product specifications and test reports can be requested from the supplier. The test conditions should also be checked to determine whether they are close to the actual operating environment. Some PVC-coated ventilation fabrics offer optional mold-resistant treatments, but their specific capabilities should be confirmed through the product documentation.
The base fabric of PVC tarpaulin typically bears most of the tensile load, while the coating provides surface protection and a certain degree of sealing. In high-humidity environments, the material may also be subjected to air pressure, suspension tension, friction, and repeated bending. Therefore, products should not be selected solely according to fabric thickness or weight per unit area. Particular attention should be paid to warp and weft tensile strength, tear strength, and coating adhesion. If the duct needs to be stored, moved, or repositioned frequently, the integrity of the surface after repeated folding should also be considered. For negative-pressure exhaust ducts, the duct diameter, fan suction pressure, and support structure should be evaluated together to ensure that the duct does not shrink excessively or collapse under suction.
Different high-humidity environments have different requirements for ventilation ducts. Ordinary damp industrial plants may primarily require good waterproof performance and mechanical strength, while underground engineering projects, warm and humid exhaust areas, or industrial facilities containing special gases may also require consideration of temperature resistance, flame-retardant ratings, antistatic properties, and chemical resistance. Therefore, material specifications should be evaluated in combination with the duct's operating conditions.
For these environments, PVC-coated polyester fabrics with good coating integrity, appropriate tensile strength, and abrasion resistance can be prioritized. If the ducts need to be moved frequently, weight, bending performance, and connection methods should also be considered to avoid increasing handling difficulties due to materials that are too heavy or rigid.
Underground engineering projects and long-distance exhaust applications generally require greater attention to duct load-bearing capacity, seam strength, and operational safety. Appropriate specifications should be selected according to fan pressure, duct length, and suspension methods. The product's flame-retardant and antistatic properties must also be confirmed to ensure compliance with project requirements.
When ducts continuously transport warm, humid air, particular attention should be paid to the relationship between the duct wall temperature and the air's dew point. If the duct wall temperature falls below the dew point, water vapor may condense into droplets. Therefore, in addition to selecting fabrics with good water resistance, the duct routing, support structure, and drainage design should also be checked to prevent moisture from accumulating in low-lying areas for extended periods. For humid airflow containing acids, alkalis, oil mist, or other industrial media, the resistance of the PVC formulation and coating to these substances should be further verified. Ordinary PVC tarpaulin is not suitable for every chemical environment, and a material compatibility assessment should be conducted when necessary.
PVC coatings can reduce moisture penetration into the base fabric. However, if the duct is damaged, the seams leak, or fibers are exposed at the edges, moisture may still enter the internal structure. If the duct remains damp for extended periods, dust and organic contaminants accumulating on the surface may also increase the risk of microbial growth. Therefore, products with appropriate mold resistance should be selected according to the operating environment, and the ducts should be kept clean and adequately dry.
Not necessarily. Greater thickness does not automatically mean that waterproof performance, tear resistance, and flex resistance will all improve simultaneously. Base fabric density, yarn strength, coating adhesion, and the seam quality of the finished product are equally important. Selection should be based on duct dimensions, pressure, usage frequency, and installation methods, with key specifications verified through technical documentation.
The assessment can be conducted in three stages: material testing, finished product inspection, and operational monitoring. The material must provide strength, water resistance, and temperature resistance appropriate for the operating conditions. The finished product should be inspected for weld seams, interfaces, and suspension points. After the duct is put into operation, regular checks should be carried out for coating cracks, air leakage at seams, localized water accumulation, and duct deformation. For projects subject to specific safety standards, performance verification should also be conducted in accordance with the relevant requirements.
When selecting PVC tarpaulin ventilation duct materials for high-humidity environments, priority should be given to checking coating waterproof performance, base fabric mechanical strength, coating adhesion, and finished seam quality. Specific material grades should then be determined according to air temperature, condensation conditions, fan pressure, and on-site safety requirements. Fabric thickness, color, or waterproof marketing claims alone cannot accurately determine whether a material is suitable for prolonged use in damp environments.
During procurement, it is advisable to inform the supplier of the duct application, operating temperature, air pressure, duration of use, and the presence of any special gases. Corresponding technical specifications and test documentation should also be requested. If the project requires mold resistance, flame retardancy, or antistatic properties, the relevant testing standards and acceptance requirements should be clearly specified. Through appropriate material selection, standardized manufacturing, and regular inspections, the risk of coating damage, seam leakage, and moisture accumulation can be reduced, allowing PVC tarpaulin ventilation ducts to better meet actual ventilation requirements.
