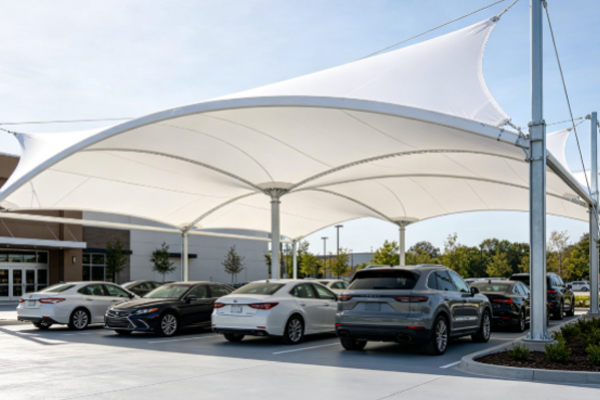

Commercial parking areas are used by customers, employees, visitors, and service vehicles every day, so the parking environment needs to provide reliable protection from sunlight, rain, wind, and dust. A PVC tarpaulin membrane structure parking canopy combines flexible PVC membrane material with steel support structures and tensioning components to create a practical covered parking area without relying on a heavy conventional roof. The membrane surface can be customized according to parking lot size, vehicle arrangement, architectural style, and available installation space. It can cover individual parking spaces, multiple parking rows, shopping center parking areas, office building parking lots, hotel parking facilities, industrial parks, and commercial complexes. PVC tarpaulin offers waterproofing, weather resistance, tensile strength, flexibility, and relatively convenient fabrication, making it suitable for outdoor membrane structure applications. With appropriate structural planning, the canopy can provide rain protection while reducing direct solar radiation on parked vehicles. The open structural form also allows air to circulate naturally around the parking area, helping maintain a more comfortable outdoor environment. For commercial property owners, parking operators, shopping centers, hotels, and business parks, a customized PVC membrane structure parking canopy can combine functional vehicle protection with a clean and modern architectural appearance.
PVC tarpaulin used in membrane structure parking canopies generally consists of a high-strength woven fabric base and a PVC coating. The fabric provides tensile support, while the PVC layer contributes waterproofing, weather resistance, and surface protection. Unlike rigid roofing materials, membrane material can be shaped into curved, saddle-shaped, wave-shaped, or cantilevered forms through structural tension. This makes it possible to create parking canopies with different visual styles while adapting to site dimensions. Commercial parking facilities often need to accommodate vehicle movement, pedestrian access, lighting, drainage, signage, and security equipment, so the position of support columns should be carefully planned. The membrane should provide sufficient coverage over vehicles without obstructing driving lanes or pedestrian paths. Steel columns, beams, cables, connection fittings, and foundation structures should work together with the PVC membrane to create a stable system. The final design should be determined according to local environmental conditions, expected loads, parking capacity, and applicable building requirements.
PVC membrane material can create a continuous waterproof surface above parked vehicles, reducing direct exposure to rainfall. This is particularly useful for commercial parking lots where customers may need to walk from their vehicles to shops, offices, hotels, restaurants, or other facilities. The PVC coating also helps the membrane withstand regular outdoor exposure to dust, humidity, and sunlight. Different PVC membrane specifications can be selected according to the climate, project scale, expected service conditions, and design requirements. For locations with strong sunlight, suitable weather-resistant materials can be selected, while areas with frequent rainfall require careful consideration of membrane slope, drainage paths, and seam treatment. Heat-welded seams can provide continuous connections, while reinforced edges can support tensioning and connection points. Proper material selection and structural design allow the PVC membrane to serve as a durable protective roof for commercial parking spaces.
Commercial parking lots can have very different layouts, including single-row parking, double-row parking, angled parking, multi-level parking areas, and large open parking zones. PVC membrane dimensions should therefore be customized according to the number of parking spaces, vehicle dimensions, driving lanes, pedestrian routes, and site boundaries. Small commercial properties may use individual or modular canopies covering several vehicles, while shopping centers and large business parks can use continuous membrane structures covering multiple parking rows. The height of the canopy should provide sufficient clearance for cars, SUVs, vans, and service vehicles. Column positions should also avoid interfering with door opening, vehicle turning, and pedestrian movement. Proper dimensional planning allows the membrane to provide useful coverage without unnecessarily occupying valuable parking space.
Commercial Parking Application | Recommended PVC Membrane Design | Main Function | Key Design Consideration |
Shopping Center Parking | Large Continuous Membrane | Rain and Sun Protection | High Passenger and Vehicle Flow |
Hotel Parking Area | Decorative Membrane Canopy | Vehicle Protection and Appearance | Architectural Coordination |
Office Building Parking | Modular PVC Canopy | Daily Vehicle Protection | Efficient Space Use |
Industrial Park Parking | High-Strength Membrane | Weather Protection | Durability |
Restaurant Parking | Compact Membrane Structure | Rain and Sun Protection | Customer Convenience |
Commercial Complex | Large-Span Membrane | Multi-Row Coverage | Traffic and Drainage Planning |
A commercial PVC membrane parking canopy should be planned according to parking capacity, vehicle movement, pedestrian circulation, drainage requirements, and the surrounding building environment. During installation, the site is measured first to determine available space and vehicle circulation routes. The steel support structure is then installed according to the engineering design, followed by PVC membrane fabrication and tensioning. The membrane should be properly stretched to form the intended shape and avoid excessive sagging. Drainage paths should be integrated into the membrane geometry so rainwater can be directed toward designated outlets instead of accumulating above parked vehicles. Lighting, surveillance equipment, charging stations, parking signs, and other facilities can also be integrated into the canopy layout where appropriate. Once completed, the structure should be inspected for connection stability, membrane tension, drainage performance, and safe vehicle clearance before regular commercial operation.
A structured installation process helps coordinate the membrane, steel structure, parking layout, and supporting facilities while reducing interference with normal vehicle movement.
Site survey and measurement: Record parking dimensions, vehicle lanes, pedestrian paths, existing structures, drainage points, and available installation areas.
Structural planning: Select the suitable canopy shape, span, column arrangement, and membrane coverage according to parking requirements.
Foundation preparation: Construct the required foundations and ensure that anchor positions correspond accurately with the structural design.
Steel structure installation: Install columns, beams, support members, tensioning components, and connection fittings.
PVC membrane fabrication: Cut, heat-weld, reinforce, and prepare the membrane according to the designed canopy geometry.
Membrane installation: Connect the PVC tarpaulin to the structural and tensioning system and gradually adjust the membrane tension.
Drainage and safety inspection: Check rainwater flow, vehicle clearance, pedestrian routes, fastening points, and overall structural stability.
After installation, the canopy should undergo a complete inspection before being opened for commercial use, with particular attention given to membrane tension, structural connections, drainage, and clearance above vehicle lanes.
PVC membrane parking canopies are suitable for a wide range of commercial properties. Shopping centers can install large membrane structures above customer parking spaces to provide shade and rain protection while improving the visual quality of the parking environment. Hotels can use customized curved canopies at entrances and parking areas to create a more coordinated architectural appearance. Office buildings and business parks can use modular structures for employee and visitor parking. Restaurants, supermarkets, entertainment venues, and retail stores can also use compact canopies to improve customer convenience during rainy or sunny weather. Industrial parks can install larger high-strength PVC membrane structures to protect employee vehicles and service vehicles. For newly developed commercial projects, the parking canopy can be incorporated into the overall site planning, while existing parking lots can use modular designs to minimize disruption during renovation.
Outdoor parking canopies are continuously exposed to sunlight, rain, wind, dust, and seasonal temperature changes, making routine maintenance important. The PVC membrane should be inspected periodically for visible tears, abnormal sagging, accumulated dirt, and damaged seams. Steel columns, beams, tensioning components, bolts, and connection fittings should also be checked for abnormal movement, corrosion, or loosening. Drainage outlets should remain clear so rainwater can flow away efficiently. After severe weather such as heavy storms or strong winds, a dedicated inspection should be carried out before the parking area returns to normal operation. Surface dirt and leaves can be removed using cleaning methods suitable for PVC materials. Sharp tools and aggressive cleaning methods should be avoided to prevent damage to the membrane surface. Proper maintenance helps preserve the waterproofing, appearance, and structural performance of the parking canopy.
PVC tarpaulin membrane structures offer commercial parking facilities a combination of practical vehicle protection and flexible architectural design. The membrane is lightweight compared with many conventional roofing systems, while its tensioned structure can cover relatively large areas without requiring dense internal supports. This can help maintain open parking lanes and improve vehicle circulation. The PVC coating provides waterproofing and outdoor weather resistance, while the woven base contributes tensile strength. The membrane can also be fabricated in different colors and shapes to coordinate with commercial buildings and corporate branding. For property developers and parking operators, the structure can be customized according to available land, parking capacity, vehicle types, and architectural requirements. Modular designs can also make future expansion more manageable when parking demand increases.
Direct exposure to sunlight and rainfall can affect the comfort and condition of parked vehicles. A PVC membrane canopy provides overhead coverage that reduces direct solar radiation and rainfall on vehicles. During hot weather, shaded parking areas can create a more comfortable environment for customers and employees when returning to their vehicles. During rainy conditions, the canopy provides a dry overhead route around the parking area and can reduce direct rain exposure when passengers enter or leave vehicles. The actual level of protection depends on canopy coverage, membrane height, structural shape, and local weather conditions, so these factors should be considered during project planning.
PVC tarpaulin combines the mechanical support of a woven fabric base with the protective characteristics of a PVC coating. This structure provides suitable tensile performance for tensioned membrane applications while also offering resistance to outdoor moisture and weather exposure. The material can be heat-welded and reinforced according to structural requirements, allowing it to form large membrane surfaces with customized shapes. For commercial parking projects, material specifications should be selected according to local wind conditions, rainfall, sunlight exposure, project scale, and expected service requirements. Structural engineering, installation quality, material specifications, and routine maintenance all contribute to the long-term performance of the completed canopy.
The lightweight and flexible nature of membrane structures allows designers to create relatively large covered areas with strategically positioned support columns. Cantilevered designs can place columns toward the edge of parking spaces, reducing interference with vehicle doors and circulation lanes. Continuous membrane structures can also cover several parking rows while maintaining open internal areas. This is particularly useful for shopping centers, hotels, office parks, and large commercial developments where efficient use of parking space is important. The canopy can also reserve suitable locations for lighting, security cameras, signage, electric vehicle charging equipment, and pedestrian access routes.
Commercial properties have different architectural styles, parking layouts, and functional requirements, so PVC membrane parking canopies can be customized accordingly. Membrane color, thickness, weight, dimensions, shape, light transmission, reinforced edges, heat-welded seams, and connection details can be selected according to project requirements. Shopping centers may choose visually distinctive large-span structures, while office buildings may prefer simple modular designs. Hotels can coordinate canopy colors and curves with their exterior architecture, while industrial parks may prioritize high-strength materials and practical coverage. Customized design allows the PVC membrane structure to fit the available site while balancing vehicle protection, passenger circulation, drainage, appearance, and long-term operation.
If you are purchasing PVC commercial parking canopy membranes, PVC membrane structure tarpaulins, car parking shelter materials, PVC parking covers, commercial parking lot canopies, PVC sunshade structures, or customized membrane structure tarpaulins, suitable products can be selected according to parking capacity, vehicle dimensions, site area, local climate, architectural style, and project requirements. For shopping centers, hotels, office buildings, restaurants, industrial parks, supermarkets, business complexes, and commercial property projects, PVC tarpaulin can be customized in terms of thickness, weight, color, dimensions, light transmission, reinforced edges, eyelet positions, heat-welded seams, and structural connection requirements.
WeChat: 0086-13921439224
Email: tarp@newstarventilation.com
Contact us for PVC tarpaulin membrane structure commercial parking canopy products and customized services. By providing parking area dimensions, number of parking spaces, desired coverage, structural preferences, and operating environment, suitable PVC membrane materials and canopy solutions can be developed to provide reliable rain protection, sun shading, and comfortable covered parking space for commercial properties.
