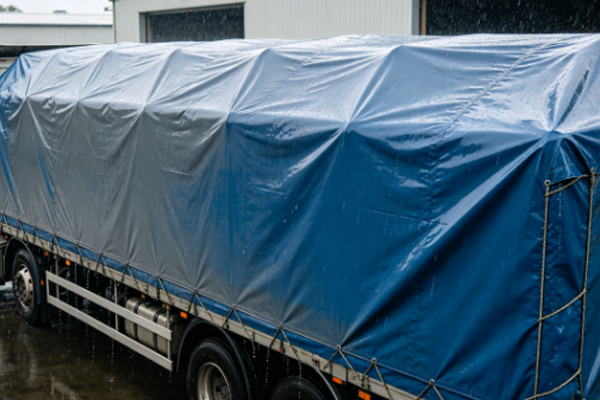

PVC Tarpaulin Rain Protection Solution for Transportation Vehicle Tops

Transportation vehicles are frequently exposed to rain, road dust, mud splashes, and strong sunlight while traveling on highways. Flatbed trucks, sideboard trucks, engineering vehicles, and semi-trailers are particularly vulnerable because their cargo areas may not have a permanent roof. When unexpected rainfall occurs, exposed cargo can suffer from wet packaging, surface contamination, or even water-related damage. PVC tarpaulin combines a high-strength textile substrate with a PVC coating and can be manufactured in different sizes according to vehicle dimensions. With eyelets, reinforced webbing, ropes, tensioners, and other fastening structures, the tarpaulin can cover the top of the cargo and create a stable rain protection layer.

A properly designed PVC truck tarpaulin can help reduce direct exposure to rainfall while also limiting the entry of dust and other road contaminants. The material can be removed, folded, stored, and reused, making it suitable for logistics fleets that frequently operate outdoors. By selecting the right dimensions, material specification, edge reinforcement, and fastening method, transportation companies can establish a practical and durable overhead protection system for different cargo types.

PVC Tarpaulin Material and Rain Protection Design for Transportation Vehicles

PVC tarpaulin is generally manufactured by combining a woven fabric base with a PVC coating. The fabric substrate provides tensile strength and structural support, while the PVC coating contributes to waterproofing, weather resistance, and surface protection. When used on the top of transportation vehicles, the tarp should be customized according to cargo height, vehicle width, platform length, and available fixing points. The size should not be determined only by vehicle length. Sufficient edge allowance is needed so both sides can be securely connected to the vehicle while avoiding excessive looseness.

For irregular machinery, large equipment, and cargo with uneven surfaces, a customized tarp can provide better coverage. Large PVC tarpaulins can also be manufactured using heat-welded seams to create continuous covering areas. Reinforced webbing and eyelets can be added around the edges to improve the load-bearing performance of fastening areas. Because the tarp is continuously exposed to airflow during transportation, the covering shape, tension level, and distribution of fixing points should be carefully considered.

Waterproof and Weather-Resistant Performance of PVC Tarpaulin

The PVC coating forms a protective layer over the textile substrate, making the material suitable for outdoor transportation applications. Rainwater should be able to flow toward the sides or designated drainage points through a properly shaped tarp. For vehicles frequently operating in regions with heavy rainfall, PVC tarpaulin with suitable outdoor performance can be selected, while reinforced edges and connection areas can provide additional durability. Long-term transportation tarpaulins may also be exposed to ultraviolet radiation, temperature fluctuations, road dust, and continuous airflow, so weather resistance is an important consideration when selecting the material.

PVC Tarpaulin Size and Vehicle Top Coverage

A vehicle-top rain protection tarp should cover the cargo completely and extend toward both sides according to the vehicle structure. Flatbed trucks usually require larger tarpaulins so that the cargo top and side areas can be covered. Sideboard trucks can use the sideboards as partial support, making the tarp easier to secure. For cargo with greater height, additional covering allowance is required. An undersized tarp may leave exposed sections, while an oversized tarp may become loose and create unnecessary wind resistance. The appropriate size should provide complete coverage while allowing convenient fastening and tension adjustment.

PVC Tarpaulin Installation and Applications for Transportation Vehicles

Installing PVC tarpaulin on top of a transportation vehicle requires consideration of cargo shape and the vehicle’s fastening system. After the cargo has been loaded, the top should be inspected for sharp metal edges, protruding machinery components, or other areas that could puncture or abrade the tarp. Protective pads can be placed around vulnerable areas before the tarp is spread smoothly across the cargo. After covering the cargo, the tarp should be tightened gradually using the vehicle’s fixing points instead of relying on only a few fastening locations. The top surface should also be arranged with a suitable drainage slope so that rainwater can flow away naturally.

PVC Tarpaulin Installation Procedure for Top Rain Protection

A standardized installation method can reduce the risk of water penetration, tarp loosening, and damage during transportation. The following procedure can be used for many vehicle applications:

• Inspect the cargo top: Remove or protect sharp objects that may damage the tarp, especially around steel products and machinery.

• Confirm the tarp dimensions: Check that the PVC tarpaulin provides enough coverage for the vehicle and cargo height.

• Spread the tarp: Extend the material evenly across the cargo top and make sure important areas are fully covered.

• Create a suitable drainage slope: Avoid large depressions on the top surface so rainwater can flow toward the sides.

• Secure both edges: Connect eyelets, ropes, tensioners, or dedicated fastening devices to the vehicle’s fixing points.

• Adjust the tension evenly: Tighten the tarp gradually so that no single fixing point carries excessive tension.

• Perform a departure inspection: Check eyelets, ropes, edges, and tensioning components before the vehicle starts moving.

After installation, the driver or loading team should confirm that the tarp edges do not interfere with wheels, braking components, or other moving parts. A stable fastening condition helps maintain reliable coverage during transportation.

PVC Tarpaulin Applications in Transportation

PVC tarpaulin can be used in a variety of transportation environments that require overhead rain protection. Construction material trucks can use tarpaulins to reduce exposure to rainfall and road dust. Machinery transporters can use customized PVC covers to protect equipment from rain and mud contamination. Steel, boards, pipes, and other outdoor cargo can be covered with reinforced PVC tarpaulins. Engineering vehicles that frequently travel between construction sites and transportation routes can also use abrasion-resistant tarpaulins for overhead protection. Industrial components, packaged goods, warehouse transfer cargo, and other materials can be protected with PVC tarpaulins manufactured according to vehicle dimensions. Different cargo types should be evaluated for moisture protection, ventilation, heat dissipation, and other storage requirements before selecting the final covering method.

Daily Inspection and Maintenance of PVC Transportation Tarpaulins

Transportation tarpaulins experience wind, friction, folding, loading operations, and repeated fastening during long-term use, so regular inspection is recommended. The tarp surface should be checked for cracks, holes, and visible abrasion. Eyelets should be inspected for tearing, while reinforced webbing, ropes, and tensioners should be checked to ensure they remain secure. After transportation in heavy rain, the tarp should be inspected for abnormal water accumulation or loose fastening points. After passing through muddy roads or construction sites, dust and mud should be removed from the surface when practical. After use, the tarp should be cleaned and completely dried before folding and storage. It should be kept away from sharp metal objects, corrosive chemicals, and high-temperature equipment. Prompt repair of minor damage can help prevent small tears from becoming larger during subsequent transportation.

Advantages and Features of PVC Tarpaulin Top Rain Protection Solutions

PVC tarpaulin vehicle-top rain protection systems offer large coverage areas, flexible installation, easy removal, and reusability. Compared with disposable plastic sheets, PVC tarpaulin can be customized according to vehicle dimensions and cargo types. Reinforced webbing, eyelets, and heat-welded seams can be incorporated to improve practical performance. For logistics fleets, a suitable vehicle tarpaulin can be reused for multiple transportation tasks and can be relatively easy to unfold, tension, remove, and store. Selecting the appropriate material specification and fastening system allows PVC tarpaulin to support general freight, engineering transportation, machinery logistics, construction material delivery, and other outdoor transportation requirements.

Rain Protection Helps Reduce Cargo Moisture Exposure

When a transportation vehicle encounters rainfall, the cargo top is one of the areas most directly exposed to water. PVC tarpaulin creates a continuous covering layer above the cargo and can reduce direct contact between rainwater and packaged goods, machinery, construction materials, and other exposed cargo. A properly shaped roof cover can also guide rainwater toward the edges, reducing water accumulation and additional loads on the tarp. For long-distance transportation vehicles, complete overhead coverage provides continuous external protection under changing weather conditions.

PVC Tarpaulin Provides Tensile Strength and Abrasion Resistance

During vehicle operation, the tarp is exposed to continuous airflow and vehicle vibration. Fastening areas may experience concentrated loads, especially when the vehicle travels at higher speeds. PVC tarpaulin combines a woven fabric substrate with a PVC coating and can be manufactured in different specifications according to transportation requirements. Reinforced edge webbing can be used for heavy or sharp-edged cargo, while protective pads can be placed between the cargo and tarp where necessary. Distributing fastening points appropriately can reduce excessive stress around individual eyelets and edge sections.

PVC Tarpaulin Supports Customization and Repeated Use

Transportation vehicles differ in length, width, cargo height, and fastening configuration. PVC tarpaulin can be fabricated according to the vehicle platform, cargo dimensions, and fixing-point layout. Eyelets, reinforced webbing, heat-welded seams, and other structures can be incorporated according to the intended application. Logistics companies can prepare corresponding tarp sizes for different vehicle models to improve compatibility during loading. After cleaning, drying, folding, and proper storage, the tarpaulin can be used again for future transportation tasks, making it suitable for fleets that require frequent overhead cargo protection.

Suitable for Different Road and Transportation Conditions

PVC tarpaulin can be used for urban delivery, regional freight transportation, long-distance logistics, engineering transportation, industrial freight, and construction material delivery. Different routes may involve different weather and road conditions, so material specifications and fastening methods can be adjusted accordingly. Vehicles frequently traveling through rainy regions can prioritize waterproof performance, while vehicles operating around construction sites can place greater emphasis on abrasion and dust protection. Large machinery transportation may require customized dimensions based on equipment size. By combining appropriate material, dimensions, reinforcement, and fastening systems, a practical top rain protection solution can be developed for different transportation conditions.

For logistics companies and transportation fleets looking for PVC truck tarpaulin, PVC cargo cover, PVC truck waterproof tarp, heavy-duty truck tarp, PVC transportation tarpaulin, cargo rain cover, or custom PVC truck tarp, suitable products can be selected according to vehicle dimensions, cargo height, transportation distance, weather conditions, and fastening requirements. PVC tarpaulin can be supplied with customized dimensions, different material specifications, reinforced edges, eyelets, heat-welded seams, and fastening structures for flatbed trucks, semi-trailers, sideboard trucks, engineering vehicles, and machinery transport vehicles.
