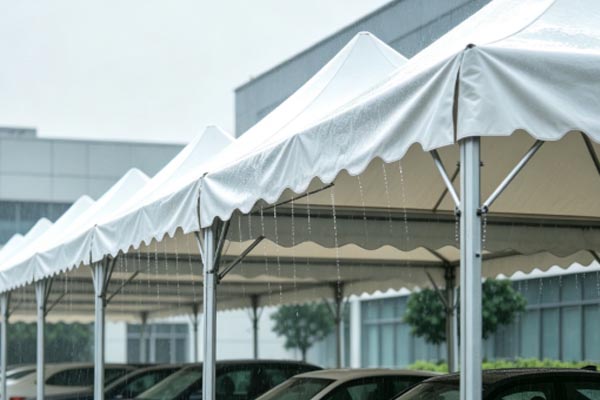

PVC Tarpaulin Rainproof Solutions for Car Parking Sheds

Car parking sheds are exposed to outdoor conditions for long periods. Rainwater, standing water, ultraviolet rays, and strong winds can affect the parking experience and accelerate the aging of the shed fabric. With features such as waterproofing, weather resistance, easy cleaning, and customization, PVC tarpaulin has become a common material choice for rainproof renovations and new car parking shed projects. However, effective rain protection depends not only on the tarpaulin itself, but also on its thickness, coating, drainage slope, edge fastening, and routine maintenance.

Why PVC Tarpaulin Is Suitable for Rainproof Car Parking Sheds

Car parking sheds are mainly used for rain protection, sun shading, ventilation, and wind resistance. Compared with ordinary plastic sheeting, PVC tarpaulin is more suitable for fixed and semi-fixed parking sheds and generally offers a longer service life.

Reducing the Impact of Rainwater on Vehicles and Parking Areas

If the roof of a parking shed does not provide sufficient waterproofing, rainwater can easily leak through pinholes, seams, or aged areas, affecting vehicle cleanliness and the user experience.

• PVC tarpaulin is waterproof-treated to reduce rainwater penetration.

• A properly designed roof slope allows rainwater to drain quickly.

• Sufficient tarpaulin coverage can reduce rain entering from the sides.

• In areas with frequent rainfall, water barriers, drainage channels, or side rainproof structures can be added.

Rain protection for a parking shed depends not only on the waterproof performance of the material, but also on whether the overall structure provides smooth drainage.

Meeting Sun-Shading, Dustproof, and Outdoor Weather-Resistance Requirements

Vehicles parked outdoors for long periods are easily affected by sunlight, dust, leaves, and bird droppings.

• PVC tarpaulin provides a certain degree of sun shading and can reduce heat buildup inside vehicles.

• Its smooth surface makes routine cleaning relatively easy.

• It offers a certain level of weather resistance and can adapt to changing outdoor conditions.

• Selecting suitable colors and light transmission levels can improve comfort inside the parking shed.

For residential communities, commercial parking lots, factory parks, and scenic-area parking zones, comprehensive protection is usually more important than rain protection alone.

Material Selection and Specification Planning for PVC Tarpaulin Car Parking Sheds

The thickest or most expensive PVC tarpaulin is not necessarily the most suitable choice. The parking shed area, structure, climate, service life, and maintenance conditions all affect material selection.

Selecting Material Performance According to the Parking Environment

Different parking locations face different risks. The main protection requirements should be clarified before selecting materials.

Determining material performance according to the actual environment can prevent leakage caused by insufficient specifications and reduce unnecessary material costs.

Calculating Tarpaulin Specifications According to Parking Shed Size and Structure

When measuring a parking shed, the tarpaulin should not be cut only according to the outer dimensions of the steel frame. Space for installation and drainage must also be reserved.

• The tarpaulin length should include installation allowances for hems, fastening strips, or fasteners.

• The roof should have a certain slope to prevent standing water.

• Multi-space parking sheds should consider intermediate supports and zoned drainage.

• The unfolded dimensions of curved, arched, and single-slope sheds are different.

• If the tarpaulin needs to be removed for cleaning or replacement, sufficient disassembly space should be reserved.

The more accurate the dimensions, the easier it is to keep the tarpaulin flat during installation, reducing cutting and rework waste.

Balancing Thickness, Weight, and Cost According to the Service Period

For short-term temporary parking sheds, convenient installation and transportation should be prioritized. For long-term fixed parking sheds, weather resistance, tear resistance, and service life are more important. For outdoor use, check whether the PVC coating is uniform, whether the base fabric has sufficient strength, and whether the hems and eyelets are secure. At the same time, the material weight should match the load-bearing capacity of the steel frame. Material selection should be based on the actual application scenario rather than blindly pursuing greater thickness or weight.

Rainproof Installation Design for PVC Tarpaulin Car Parking Sheds

The rainproof performance of PVC tarpaulin depends on installation details. Even when the material itself is waterproof, insufficient slope, improper seam treatment, or uneven fastening can still cause leakage and tearing.

Designing a Proper Roof Slope and Drainage Path

The roof of a parking shed should not be laid flat, because flat tarpaulin is prone to water accumulation. Long-term water pressure may cause deformation, leakage, or tearing. The following points should be considered during design:

• A single-slope shed directs rainwater to one side.

• A double-slope shed directs rainwater to both sides.

• An arched shed keeps the tarpaulin tensioned so that rainwater can flow down naturally.

• Large parking sheds should be divided into drainage zones.

• Water channels, downpipes, or water barriers can be installed along the edges.

Efficient drainage reduces the time rainwater remains on the tarpaulin and lowers pressure on both the structure and the fabric.

Treating Seams, Edges, Eyelets, and Other Leakage-Prone Areas

The areas most likely to leak in a parking shed are seams, edges, eyelets, and connection points.

• Seams should be heat-sealed, welded, or treated with sealant.

• Reinforcement layers should be added around eyelets to prevent tearing.

• The tarpaulin edges should be hemmed to improve tear resistance.

• Sharp burrs on steel frame contact points should be removed to prevent friction damage.

• Horizontal seams and low-lying seams should be minimized when joining tarpaulin sections.

Proper treatment of these details can reduce rain leakage and later repair requirements.

Using a Uniform Load-Bearing Fastening Method

Parking sheds are affected by gusts, heavy rain, and seasonal wind pressure. If the fastening method is improper, the tarpaulin may loosen, flap against the steel frame, or tear. Common fastening methods include fastening strips, bolts, straps, and specialized fasteners. Additional fastening points should be added at the four corners, turning points, and windward areas, with reasonable spacing to prevent excessive stress. After installation, the tarpaulin should be moderately tensioned—not too loose or overstretched. Large-span parking sheds should also include intermediate supports to distribute loads more evenly. Distributing wind forces properly can improve tarpaulin stability more effectively than simply increasing the number of fastening points.

Use, Maintenance, and Purchasing Recommendations for PVC Tarpaulin Car Parking Sheds

After installation, regular inspection, cleaning, and maintenance are still required to extend the service life of the PVC tarpaulin and maintain the appearance and protective performance of the parking shed.

Establishing a Regular Inspection System

Regular inspections are recommended according to weather conditions and usage frequency, especially after heavy rain, strong winds, snow, or high temperatures. Key inspection points include:

• Check the tarpaulin for cracks, pinholes, or wear.

• Check whether eyelets, fastening strips, and bolts are loose.

• Check whether the hems are detached or deformed.

• Check the seams for water penetration.

• Check the roof for standing water, sagging, or looseness.

• Check steel frame contact points for friction, rust, or sharp objects.

Repairing minor problems promptly is more cost-effective than replacing the tarpaulin after large-scale tearing occurs.

Maintaining Cleanliness and Drainage

Dust, leaves, and bird droppings can affect appearance and may also block drainage paths. During routine maintenance, pay attention to the following:

• Use a soft brush or low-pressure water flow to remove dust.

• Do not use highly corrosive cleaning agents, as they may damage the PVC coating.

• Clean debris from drainage channels, downpipes, and roof edges promptly.

• Do not drag sharp objects across the tarpaulin.

• Allow the tarpaulin to dry thoroughly after cleaning to reduce stains and mildew.

Keeping the drainage system clear is a very important part of rainproof parking shed maintenance.

Evaluating Purchasing Costs from a Life-Cycle Perspective

When purchasing PVC tarpaulin, do not consider only the price per square meter. Installation, maintenance, replacement, and downtime costs should also be taken into account. Key factors include:

• Material: Thickness, weight, performance, and specifications affect the purchase price.

• Processing: Hems, eyelets, heat sealing, and cutting affect installation performance.

• Installation: Steel frames, labor, and tool costs affect construction expenses.

• Maintenance: Cleaning, repairs, and replacement accessories add to routine costs.

• Replacement: Longer service life and easier disassembly reduce long-term costs.

• Operations: Parking spaces may need to be closed during repairs, which can affect management and the user experience.

For long-term use, choose a solution with stable performance, standardized processing, and easy maintenance rather than focusing only on the initial price.

During the rainy season, car parking shed tarpaulin is exposed to continuous rainfall, strong winds, and temperature fluctuations. Therefore, rainproof design should not rely on a single material alone. By selecting suitable PVC tarpaulin and combining it with structural design, installation techniques, and routine maintenance, the overall rain protection performance can be improved while leakage and water accumulation are reduced. Newstar Plastic Industry Co.,Ltd. specializes in the research, development, and production of PVC tarpaulin, PVC-coated fabrics, and outdoor protective materials. The company can provide customized materials and processing support according to parking shed dimensions, application environments, and rainproof requirements, helping customers improve the weather resistance, waterproof performance, and long-term value of their parking sheds.
