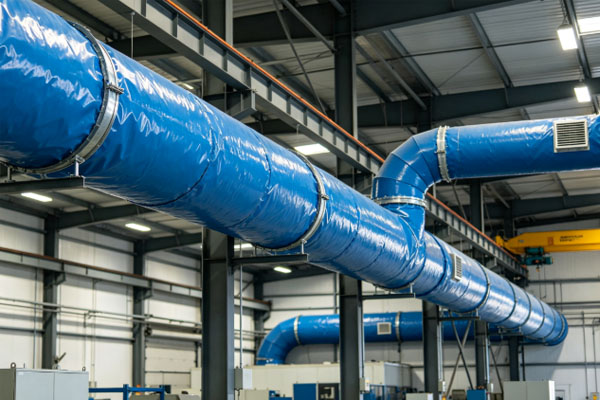

What Parts of PVC Tarpaulin Ventilation Ducts Need Regular Inspection?

PVC tarpaulin ventilation ducts are lightweight, flexible, easy to install, and convenient to dismantle. They are commonly used for factory exhaust, equipment exhaust, welding fume collection, dust conveying, temporary ventilation, and air delivery in large spaces. Because these ducts have a certain degree of flexibility, they can be affected by air pressure, vibration, temperature, humidity, and equipment start-up and shutdown during operation. Therefore, regular inspections should not only check whether the tarpaulin is damaged, but also examine the duct connections, fixing points, supports, bends, and operating condition. For industrial ventilation ducts that operate continuously for long periods, loose connections, local wear, or failed supports may initially cause only minor air leakage or movement. If left untreated, these issues may gradually worsen and affect actual exhaust performance. Establishing a regular inspection procedure can help identify these early abnormalities and reduce unexpected downtime for maintenance.

What Should Be Checked on the Surface of PVC Tarpaulin Ventilation Ducts?

The duct surface is the easiest area to inspect during routine maintenance, but the inspection should not focus only on large visible tears. After long-term exposure to airflow, equipment vibration, and contact with surrounding structures, PVC tarpaulin may first develop small scratches, localized thinning, coating wear, or loose stitching. If these areas continue to experience tension or pulling, they may gradually develop into tears. During inspection, it is recommended to check along the entire length of the duct, with particular attention to bends, support points, areas near equipment, and locations that may come into contact with other objects. The tarpaulin color, surface condition, and overall tension should also be checked for obvious changes.

The Following 4 Areas Should Be Checked Carefully

Tarpaulin surface: Check for scratches, pinholes, tears, localized thinning, aging cracks, and other damage. If the duct is used for dust or fume collection, also check for surface dust accumulation and oil contamination.

Welded and stitched areas: Pay particular attention to heat-sealed seams, stitching, and edges for cracks, loose threads, or delamination. Once these areas are damaged, the problem may expand further during operation.

Friction areas: If the PVC tarpaulin remains in contact with walls, equipment, metal supports, or other pipelines, check the contact areas for obvious abrasion. If repeated friction is found, the installation position should also be adjusted.

Bending areas: Elbows and sharply bent sections are more likely to develop wrinkles and localized stress. Check for excessive bending, flattening, or abnormal deformation.

If minor damage is found, an appropriate repair method should be selected according to the PVC tarpaulin material and manufacturing process, and the repaired area should be checked to ensure that the damage will not continue to expand. For damage located near connection points, load-bearing areas, or locations subject to frequent friction, the cause of the damage should also be investigated rather than simply repairing the tear. This helps prevent the same problem from recurring shortly after repair.

Pay Particular Attention to Connections and Support Structures

PVC tarpaulin ventilation ducts usually need to be connected to fans, metal ducts, flanges, air outlets, or equipment interfaces. These connection points provide both sealing and fixing functions, making them important areas for routine inspection. After a period of operation, clamps, straps, fasteners, or other connection structures may loosen because of vibration. If the connection does not maintain proper sealing, air may leak from the joint, and in severe cases, the duct may gradually become detached. In addition to the connections themselves, hanging straps, brackets, and fixing points should also be inspected because these components directly affect the shape and stability of flexible ducts.

What Needs to Be Confirmed at the Connections?

During inspection, check each duct connection in sequence. Confirm that the PVC tarpaulin is fully fitted over the connection, that clamps or other fasteners remain secure, and that sealing materials show no cracking, detachment, or obvious aging. If noticeable vibration, air leakage noise, or outward movement of the tarpaulin occurs near a connection after the equipment starts, the equipment should be stopped for inspection. Flange connections should also be checked for flatness, with no local lifting or uneven fastening. For ventilation ducts that are frequently installed and removed, particular attention should be given to wear caused by repeated assembly and disassembly.

Why Do Hanging Straps and Supports Need to Be Inspected?

Flexible ventilation ducts rely on hanging straps or supports to maintain an appropriate installation shape. If a support component breaks, becomes detached, or shifts position, the duct may sag significantly or even develop localized bends. Excessive fastening pressure can also concentrate stress on the tarpaulin and cause wear after long-term use. During inspection, check the strap width, fixing position, support spacing, and distance between the duct and surrounding equipment. If noticeable sagging occurs at a particular location, determine whether the support structure has changed instead of simply adding external ties.

The Operating Condition Can Indicate Whether the Duct Is Functioning Properly

A PVC tarpaulin ventilation duct may appear normal while the equipment is stopped, but this does not necessarily mean that there are no problems during operation. After the fan starts, internal airflow can change the shape of the duct, while changes in air pressure can also cause the flexible tarpaulin to move to a certain extent. Therefore, regular inspections should preferably include observation during operation. The overall duct shape, degree of movement, connection condition, and changes in sound can all provide useful information. If a particular section suddenly develops severe vibration, obvious bulging, abnormal contraction, or continuous contact with surrounding structures, further inspection should be carried out based on fan airflow, duct supports, and connection conditions.

The Following Conditions Can Be Observed During Operation

Abnormal movement: Slight movement is generally normal for flexible ducts, but continuous and excessive movement may be related to insufficient fixing, changes in air pressure, or loose connections.

Local flattening: If the duct becomes visibly flattened or folded, check the bending radius, support position, and whether surrounding structures are applying pressure.

Air leakage noise: A continuous hissing sound near a connection may indicate insufficient sealing and requires further confirmation of the leakage location.

Changes in ventilation performance: If the equipment sounds normal but the exhaust volume decreases significantly, check whether the duct is blocked, dusty, bent, or affected by significant air leakage.

Operating inspections cannot completely replace shutdown inspections. Both methods should be used together. After shutdown, the tarpaulin, support components, and connection structures can be inspected more clearly, while vibration, air leakage, and deformation are easier to identify during operation. For dust collection, welding fume extraction, and similar applications, cleaning and maintenance should also be arranged according to the characteristics of the conveyed medium to prevent gradual dust accumulation inside the duct.

How Often Should PVC Tarpaulin Ventilation Ducts Be Inspected?

The inspection interval should be determined according to the actual working environment, and there is no single schedule suitable for every PVC tarpaulin ventilation duct. For ventilation ducts used for general factory exhaust, basic visual inspections can be performed according to the equipment maintenance schedule, such as once a month, with a more comprehensive inspection during equipment servicing or shutdown maintenance. If the duct continuously conveys dust, fumes, oil mist, or other special media, or if the working environment involves high temperatures, high humidity, or significant mechanical vibration, the inspection interval should be shortened accordingly. For ducts operating continuously over long periods, it is also recommended to keep simple inspection records.

Common Questions

Q: Can the duct continue to be used if a small hole is found?

This should be determined based on the size of the hole, its location, and the conveyed medium. Very minor surface damage can be repaired using a method approved for the material, followed by a check of the sealing performance after repair. If the damage is located at a connection, welded seam, hanging strap fixing point, or high-friction area, the surrounding tarpaulin should also be inspected for further damage. The affected duct section may need to be replaced if necessary.

Q: Is sagging of a PVC tarpaulin duct normal?

Minor deformation does not necessarily indicate that the duct is damaged, but significant sagging usually requires inspection of the support structure. Flexible ducts need appropriate support. Excessive sagging may increase airflow resistance and may also cause localized bending. When this occurs, check whether the hanging straps, brackets, or fixing points have shifted or become loose.

Q: Why does air still leak when there is no visible damage at the connection?

Air leakage at a connection is not necessarily caused by a tear in the tarpaulin. It may also result from loose clamps, aging sealing materials, uneven flange connections, or the duct not being fully fitted over the connection. Therefore, when investigating air leakage, the entire connection structure should be inspected rather than checking only the tarpaulin surface.

How Can PVC Tarpaulin Ventilation Ducts Be Inspected in Actual Use?

After the equipment is shut down, inspection can be carried out along the direction of the duct. First, check the tarpaulin surface for tears, wear, and obvious aging. Then inspect the fan connection, equipment connection, and duct joints. Next, check whether hanging straps, brackets, and fasteners are secure, and confirm that the duct is not significantly sagging or being compressed by other equipment. After the shutdown inspection is completed, restart the fan and observe the operating condition, focusing on whether the connections leak air, whether the duct moves abnormally, and whether obvious deformation occurs at bends.

If there is no visible damage on the duct surface but a particular connection continues to vibrate after the fan starts, the fixing structure should be inspected carefully. If the connection is properly fixed but one section of the duct shows obvious wear, check whether continuous friction is occurring nearby. For ducts conveying dust or fumes, changes in actual airflow can also be considered when determining whether internal dust accumulation or localized blockage may be present. Following this inspection sequence helps reduce the risk of addressing only surface damage while overlooking installation-related causes.

The PVC tarpaulin duct itself should be checked for damage, wear, aging, and dust accumulation. The connections should be checked for secure fasteners and proper sealing, while the support structure should be inspected to ensure that hanging straps, brackets, and fixing points remain stable. During operation, movement, deformation, abnormal noise, and ventilation performance should also be observed. Combining these four types of inspection provides a more complete assessment of the current duct condition instead of waiting until serious air leakage or duct detachment occurs.

If the tarpaulin develops cracks, a connection continuously leaks air, a support component becomes loose, the duct becomes significantly flattened, or abnormal movement occurs during operation, maintenance should be arranged promptly. For PVC tarpaulin ventilation ducts that have been used for a long period, inspection records can be maintained to document identified problems, repair locations, and replaced components. This makes it easier to determine during subsequent inspections whether the same location repeatedly develops faults. For applications involving high-temperature exhaust, dust, oil mist, or special gases, it is also necessary to confirm whether the PVC tarpaulin material, thickness, and temperature resistance are suitable for the actual operating conditions.
