The custom dimensions of a tarpaulin should not be calculated solely based on the length and width of the top of the cargo. The drop length also needs to be included in the dimensional design. The drop is the part of the tarpaulin that extends from the top of the cargo toward the sides and naturally hangs down or is used to secure the covering. It directly affects whether the tarpaulin can completely cover the cargo, whether the edges can be properly secured, and whether problems such as water ingress, air leakage, or tarpaulin shifting are likely to occur during transportation. For truck tarpaulins, rainproof covers for cargo yards, equipment covers, and protective tarpaulins for oversized cargo, the drop dimensions generally need to be determined according to the actual coverage height during customization.
If only the length and width of the cargo are measured and the tarpaulin is manufactured based on these measurements, the finished product may only cover the top after installation, leaving obvious gaps on the sides. Alternatively, although it may cover the sides, the edges may not reach the appropriate tie-down points. A drop that is too short can affect the covering performance, while an excessively long drop may result in material waste, excessive folding, and difficulty with securing the tarpaulin. Therefore, accurately measuring the drop length and allowing a reasonable amount of drop according to the cargo shape, covering method, fixing position, and operating environment can make the finished tarpaulin better suited to actual use.

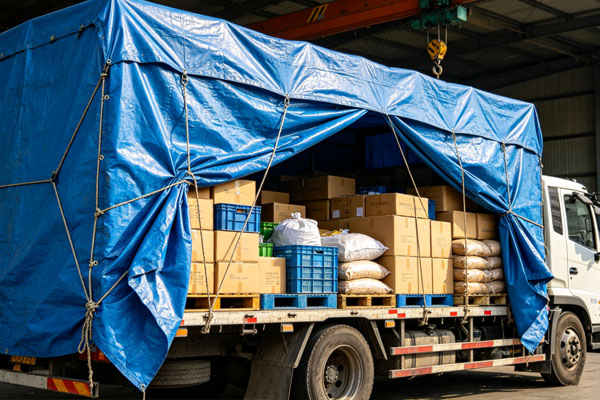

The actual coverage area of a tarpaulin is generally not equal to the dimensions of the top of the cargo. When the cargo has a certain height, the tarpaulin needs to extend from the top toward the sides, and the drop length is the key dimension used to complete this coverage. If the side height of the cargo is relatively large and the customized tarpaulin does not have enough drop, the edges of the tarpaulin cannot descend to the required position. For example, if the top width of a truck cargo bed is 2.4 meters and the tarpaulin width is calculated using only 2.4 meters, the tarpaulin can only cover the top area during actual installation. If each side of the cargo bed needs to be covered downward by 0.8 meters, the tarpaulin width must also be increased by the required drop on both sides, with an appropriate allowance based on the installation method. This allows the finished tarpaulin to properly cover both the top and sides of the cargo bed.
During actual use, tarpaulins are generally installed using ropes, hooks, fasteners, straps, or other fixing methods. The fixing points are usually located near the edges of the tarpaulin. If the drop is too short, the tarpaulin edge may not reach the appropriate fixing point, making complete coverage or secure installation difficult. During customization, the drop length can be determined according to the actual fixing method. For example, when ropes are used for tying, the tarpaulin edge needs to hang down naturally and provide sufficient space for threading and tightening the rope. If fasteners are used, the position of the fasteners and changes in the tarpaulin under tension also need to be considered. Different installation methods do not necessarily require the same drop dimensions.
When the drop is too short, the tarpaulin may be pulled too tightly, requiring installers to force the material into position before it can be secured. During transportation, wind, vehicle vibration, and other forces may cause the edges to move upward, exposing part of the cargo. A longer drop is not necessarily better. An excessively long tarpaulin edge can form large folded areas along the side of the cargo bed. After securing, it may cause dragging, water accumulation, or edge wear. For truck tarpaulins that need to be frequently loaded and unloaded, an excessive drop can also make rolling and folding more difficult. Therefore, the drop should be designed according to the actual coverage height.
When measuring tarpaulin dimensions, first determine the length and width of the top of the cargo, and then measure the height from the top covering position to the position where the tarpaulin needs to be secured. The drop length generally needs to cover this section of the side and include the necessary allowance according to the tying method.
A common measurement approach is:
Measure the length and width of the cargo top as well as the side height that needs to be covered.
Determine the position to which the tarpaulin edge needs to descend.
Allow sufficient installation space according to the ropes, fasteners, or other fixing methods.
Add the drop dimensions on both sides to the finished tarpaulin size calculation and confirm the actual dimensions after processing.
It should be noted that tarpaulin has a certain thickness and flexibility, and actual installation is also affected by bending, stretching, and tension. For large tarpaulins or irregularly shaped cargo, the coverage route and fixing positions should also be clearly determined during the measurement stage.
Truck tarpaulins generally need to meet rainproof, wind-blocking, and securing requirements, so the drop should not be determined solely by the static coverage area. When the loading height of the cargo changes, the required drop length of the tarpaulin also changes. If the cargo height is not fixed, the dimensions can be determined according to the commonly used loading height, with an appropriate adjustment allowance. For equipment covers, dustproof tarpaulins, and outdoor protective covers, the drop can be determined according to the equipment shape, support structure, and areas that need protection. Some equipment also requires ventilation or operating space at the bottom, so the drop should not be designed too deep. A reasonable size should meet both coverage and operational requirements.
No. The drop needs to match the cargo height, fixing method, and operating environment. A drop that is too short may result in insufficient coverage and difficulty with securing, while an excessive drop can increase material consumption and make installation, folding, and transportation less convenient.
If only the length and width are provided, important information needed to determine the drop dimensions is usually still missing. Before customization, it is better to also provide the cargo height, top shape, areas that need to be covered, and fixing method. For truck tarpaulins, the cargo bed dimensions and actual loading height can also be provided to help determine the finished dimensions.
There is no single fixed value that applies to all tarpaulins. The drop length should be calculated according to the cargo side height, fixing position, tarpaulin material, and installation method. For tarpaulins that require tying, sufficient edge space should generally be left to ensure that the material can be tightened properly after installation.
Dimensions that are too small may result in insufficient coverage, difficulty with securing, and reduced rain protection. Dimensions that are too large may increase folded areas and material consumption. For large tarpaulins, even a relatively small dimensional error can become more significant after multiple seams and installation points are involved, so measurements should be based as closely as possible on the actual operating conditions.
Tarpaulin customization dimensions need to consider the top coverage area, side height, and edge fixing positions at the same time. The drop length is an important part connecting these dimensions. It not only determines how far the tarpaulin can cover, but also affects the tension distribution after fixing, edge sealing performance, and convenience during daily storage and installation. Particularly in truck transportation, large equipment covering, and outdoor protection applications, even if the top dimensions are calculated accurately, the finished tarpaulin may still fail to meet the expected requirements if the drop is not appropriate.
During actual customization, measurements can be made according to the principle of “cargo top dimensions + side coverage height + fixing allowance.” At the same time, it is necessary to confirm whether the cargo has protruding parts, whether the top is flat, whether the sides need to be completely covered, and which fixing method will be used for the tarpaulin. For large PVC tarpaulins or products that require splicing, the seam positions, edge reinforcement, and fastener locations should also be confirmed in advance to avoid discovering dimensional problems after the finished product has already been manufactured.
